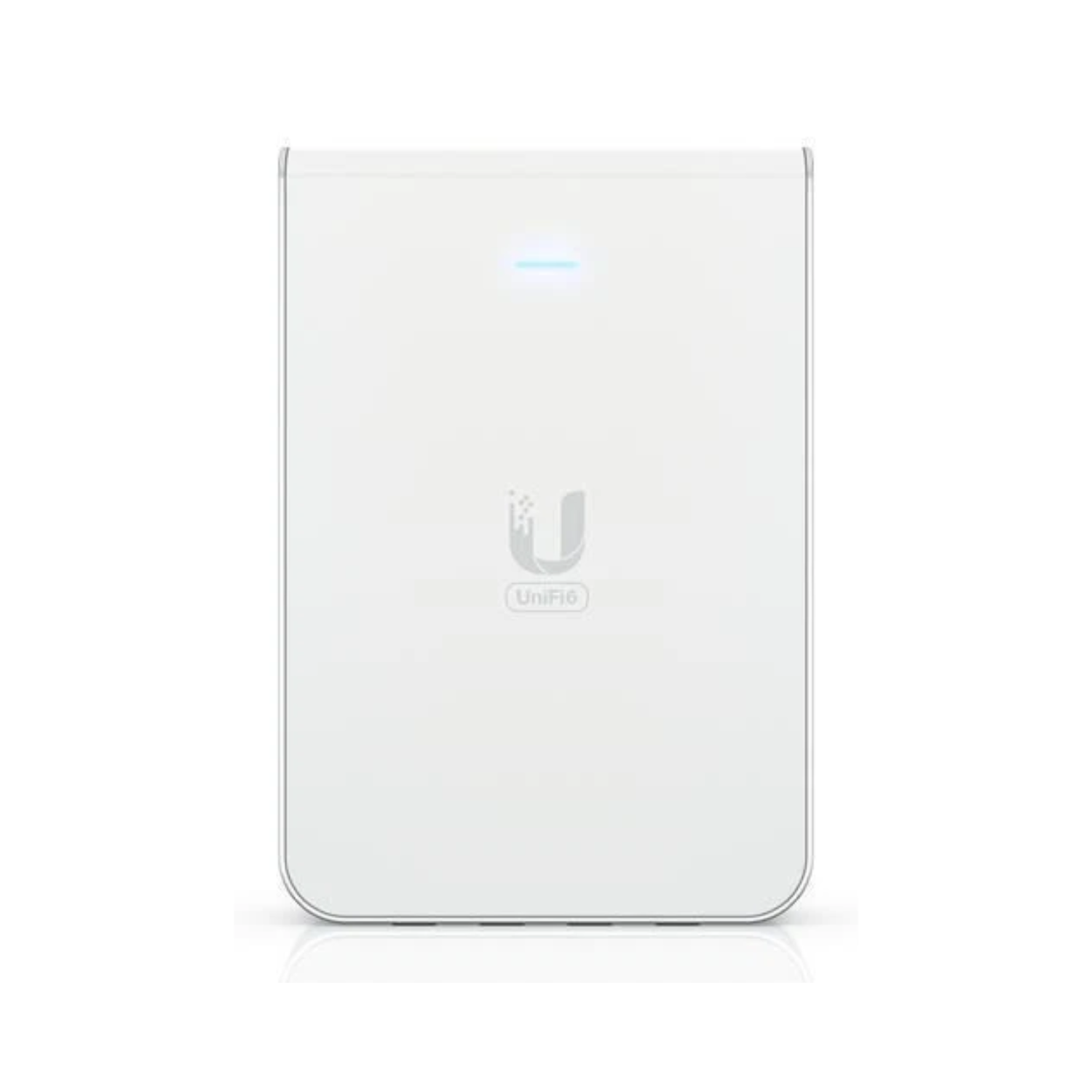

The Ubiquiti U6-IW is a wall-plate WiFi 6 access point built for modern businesses, hospitality venues, schools, and offices where clean installation and high performance both matter. Designed to sit flush inside a standard single-gang junction box, the U6-IW delivers enterprise-grade wireless connectivity without visible hardware clutter. With dual-band WiFi 6, a built-in 4-port Gigabit switch, and support for 300+ concurrent clients, the U6-IW is one of the most capable in-wall access points available today.

Key Features

The U6-IW operates on both 2.4 GHz and 5 GHz WiFi 6 (802.11ax) bands, delivering a combined aggregate throughput of up to 5.3 Gbps. The 5 GHz band supports 4×4 MU-MIMO with a maximum data rate of 4.8 Gbps using 160 MHz channel bandwidth. The 2.4 GHz band supports 2×2 MU-MIMO at up to 573.5 Mbps. With 6 spatial streams total, the U6-IW handles dense client environments with ease.

OFDMA (Orthogonal Frequency Division Multiple Access) allows the U6-IW to serve multiple devices within a single transmission, cutting latency and improving real-world throughput in crowded networks. This is critical in hotels, conference rooms, and classrooms where dozens of devices connect at once.

The U6-IW includes a built-in 4-port Gigabit Ethernet switch. One of these ports supports PoE output (PoE+ input required), letting you power a VoIP phone, a secondary device, or another PoE-enabled accessory directly from the wall plate — no extra switch needed at the desk.

Bluetooth support enables rapid, tool-free setup via the UniFi Network mobile app, reducing deployment time to minutes per unit in large rollouts.

Tech Specs

• WiFi Standard: WiFi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac
• Bands: Dual-band — 2.4 GHz + 5 GHz
• Spatial Streams: 6 total (2×2 on 2.4 GHz, 4×4 on 5 GHz)
• Max Throughput: 5.3 Gbps aggregate
• Coverage Area: Up to 1,250 ft² (115 m²)
• Max Clients: 300+
• LAN Ports: 4x Gigabit Ethernet RJ45 (1x PoE output)
• Uplink: 1x GbE PoE input
• Power Method: 802.3at PoE+ (required for PoE output)
• Max Power Draw: 13.5W (excluding PoE output)
• Mounting: Single-gang wall box (mount included)
• Dimensions: 139.7 x 96 x 31.2 mm
• Operating Temp: -30 to 60°C
• Security: WPA-PSK, WPA2, WPA3, WPA-Enterprise
• Certifications: CE, FCC, IC
• Management: UniFi Network Application (v6.4.52+)

Use Cases

Hotel Rooms and Corridors: The U6-IW mounts neatly inside the wall, replacing standard wall plates. Each room gets its own dedicated WiFi 6 access point, and guests can plug wired devices directly into the built-in switch ports. This eliminates the need for separate room switches and reduces cable clutter.

Corporate Offices: Open-plan offices with high device density demand access points that can serve many clients simultaneously without performance loss. The U6-IW handles this with OFDMA and MU-MIMO, keeping video calls, cloud apps, and file transfers running smoothly across all connected devices.

Schools and Classrooms: Classrooms deploying 1:1 device programs need reliable, wall-integrated WiFi. The U6-IW supports 300+ clients per unit and integrates into UniFi Network for centralized management across an entire campus — all from a single dashboard.

Healthcare and Clinics: In environments where cabling is minimized for hygiene and compliance, the U6-IW reduces physical hardware at the point of use while delivering fast, secure WiFi 6 connectivity to medical tablets, kiosks, and workstations.

Why Buy from Jazz Cyber Shield

Jazz Cyber Shield is a trusted IT hardware reseller serving businesses across the USA, UK, Canada, and Australia. Every Ubiquiti product we sell is sourced from authorized distribution channels, ensuring you receive genuine hardware with valid manufacturer warranty support. Our team understands enterprise networking — we are not a general electronics store. When you buy the U6-IW from Jazz Cyber Shield, you get the right product, properly listed, with accurate specs and fast dispatch.

We stock a full range of UniFi access points and networking gear. If you are building a complete UniFi network, browse our UniFi Switches and PoE Network Switches ( https://jazzcybershield.com/product-category/switches/ ) to find the right PoE+ switch to power your U6-IW deployment. Need more coverage? Explore our full range of Ubiquiti Access Points ( https://jazzcybershield.com/product-category/access-points/ ) for ceiling-mount, outdoor, and high-density options.

For the official U6-IW datasheet with full regulatory and technical documentation, visit the Ubiquiti datasheet page ( https://dl.ui.com/ds/u6-iw_ds.pdf ).

Frequently Asked Questions

Q: Does the U6-IW require a UniFi controller to function?
A: The U6-IW can be set up and managed using the UniFi Network Application, which runs on a self-hosted server, a UniFi Cloud Gateway, or via Ubiquiti’s cloud portal. Basic operation does not require a dedicated on-site controller.

Q: Does the U6-IW support PoE output on all 4 ports?
A: No. Only 1 of the 4 GbE ports supports PoE output, and this requires the U6-IW itself to be powered by a PoE+ (802.3at) source. Standard PoE input will power the device but disable the PoE output port.

Q: What is the maximum coverage area of the U6-IW?
A: Ubiquiti rates the U6-IW at up to 1,250 ft² (115 m²). Real-world coverage varies based on wall materials, interference, and client device capabilities.

Q: Is the U6-IW suitable for outdoor installation?
A: No. The U6-IW is rated for indoor use only. For outdoor deployments, Jazz Cyber Shield carries dedicated Ubiquiti outdoor access points designed for weatherproof installation.
