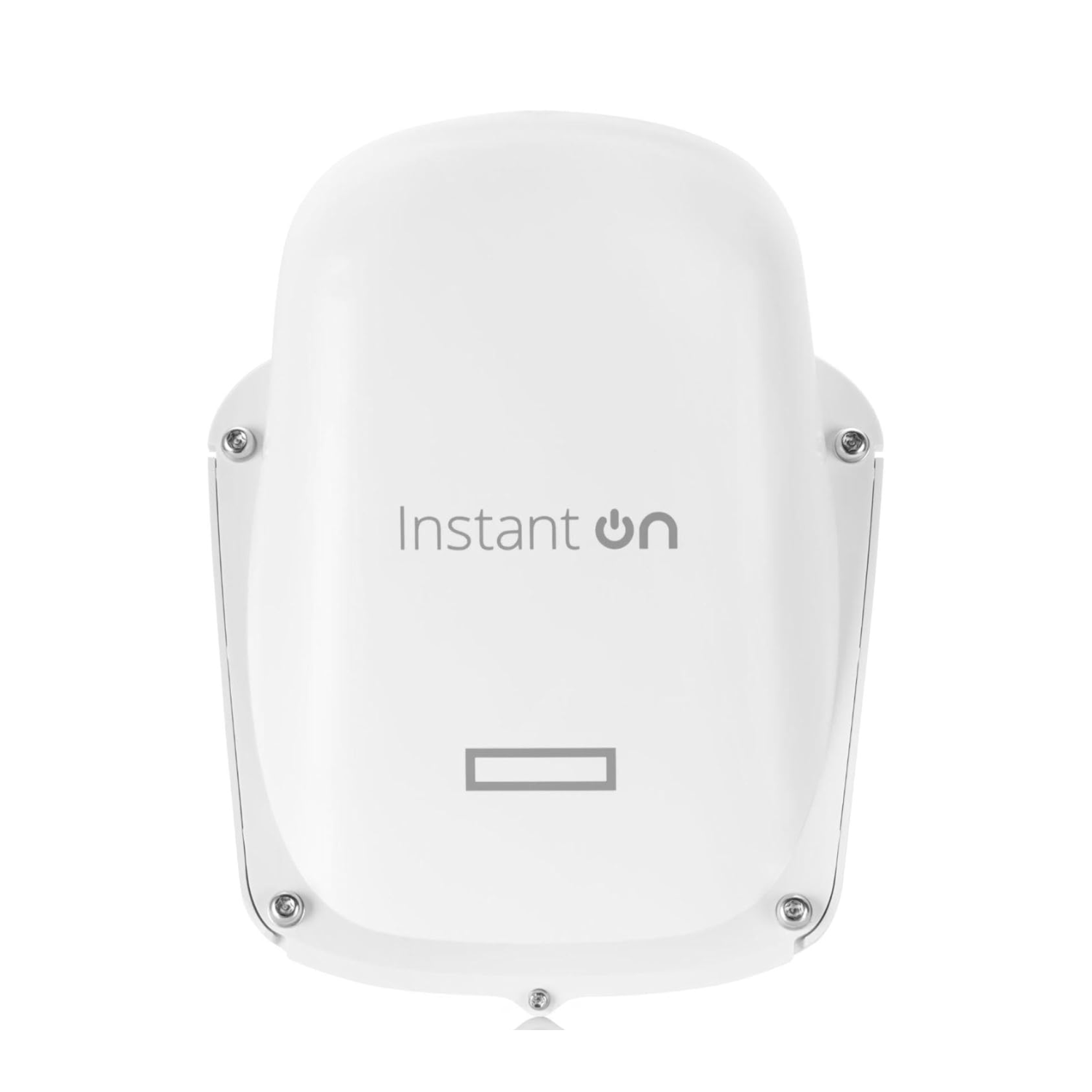

The S1T36A is the HPE Networking Instant On AP27, a Wi-Fi Certified 6 outdoor access point built for businesses that need fast, stable wireless coverage beyond their four walls. Parking lots, hotel courtyards, outdoor dining areas, warehouses, school campuses — wherever your team or customers need connectivity, the S1T36A delivers it without flinching.

KEY FEATURES

The S1T36A runs on 802.11ax (Wi-Fi 6) dual-band radios, producing 1.2 Gbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band for a combined 1.7 Gbps of total throughput. That is four times the capacity of legacy 802.11ac access points. MU-MIMO and OFDMA technology allow the AP27 to serve multiple clients at the same time without the bottlenecks common to older Wi-Fi generations — critical when 50 or more devices are active simultaneously.

The IP67-rated enclosure is one of the defining strengths of the S1T36A. IP67 means the unit is fully dust-tight and can survive immersion in water up to one meter for 30 minutes. Combined with an operating range of -40°F to 149°F (-40°C to 65°C), this access point handles the harshest conditions across every season. Wall and pole mounting brackets are integrated into the design, so installation on exterior surfaces is straightforward with no proprietary hardware needed.

Smart Mesh support lets you extend your wireless network by linking multiple Instant On access points without running new Ethernet runs to every location. The S1T36A connects wirelessly to its nearest peer and joins the same managed network, cutting installation costs significantly on large outdoor deployments.

TECH SPECS

• Model: S1T36A
• Series: HPE Networking Instant On AP27
• Wi-Fi Standard: Wi-Fi 6 (802.11ax)
• Radio Configuration: Dual-Band 2×2 MIMO
• 5 GHz Throughput: 1.2 Gbps
• 2.4 GHz Throughput: 574 Mbps
• Combined Throughput: 1.7 Gbps
• Max Simultaneous Clients: 75
• Uplink Port: 1x GbE Base-T (RJ-45)
• Power Input: 802.3at PoE+ Class 4 (30W) or 12V DC
• Power Consumption: 14.6W
• Enclosure Rating: IP67 (dust and water resistant)
• Operating Temperature: -40°F to 149°F (-40°C to 65°C)
• Antenna: Dual semi-directional internal antennas
• Security: WPA3, captive portal, ClientMatch
• Mounting: Wall or pole (hardware included)
• Management: HPE Instant On mobile app / web portal
• Warranty: 2 years with 24/7 phone support (first 90 days) + unlimited chat support

Note: Power source is not included with the S1T36A. Use a compatible 802.3at PoE injector (HPE R9M77A) or any Instant On PoE switch.

USE CASES

Retail and Hospitality Outdoor Zones: Restaurants, cafes, and hotels use the S1T36A to serve guest Wi-Fi on patios and poolside areas. The built-in captive portal lets staff display terms-of-service agreements and collect guest details without any extra hardware.

Warehouses and Loading Docks: Industrial outdoor environments are where the IP67 rating and extended temperature range prove their worth. Forklift operators, inventory scanners, and mobile devices stay connected reliably even in cold storage areas or dusty loading yards.

School and University Campuses: Outdoor study areas, sports facilities, and walkways benefit from the S1T36A’s Smart Mesh capability. IT teams can expand coverage gradually without rewiring entire buildings.

Curbside and Drive-Through Operations: Retailers operating curbside delivery or click-and-collect services rely on the S1T36A to keep staff devices online at the kerbside, eliminating missed orders caused by poor signal at the door.

WHY BUY FROM JAZZ CYBER SHIELD

Jazz Cyber Shield is an authorized HPE Aruba reseller stocking genuine products with verified serial numbers. Every S1T36A shipped from our warehouse is a factory-fresh, US-model unit covered by HPE’s full 2-year warranty. We ship to the USA, UK, Canada, and Australia with tracked international logistics, and our pre-sales team can advise on compatible PoE switches, power injectors, and multi-unit configurations before you commit to an order.

We also stock the full HPE Networking Instant On ecosystem. If you need a compatible indoor access point for mixed deployments, browse our HPE Aruba Instant On Access Points collection at Jazz Cyber Shield ( https://jazzcybershield.com/product-category/wireless/ ). For businesses building out the full network stack, explore our range of HPE Aruba PoE Switches ( https://jazzcybershield.com/product-category/switches/ ) that power the S1T36A without a separate injector.

For the official product datasheet, refer to HPE’s Instant On AP27 Datasheet ( https://h20195.www2.hpe.com/v2/getpdf.aspx/a00123459enw.pdf ).

FREQUENTLY ASKED QUESTIONS

Q: Does the S1T36A include a power supply?
A: No. The S1T36A ships as unit-only. You need either an 802.3at 30W PoE injector (HPE R9M77A is the recommended option) or any HPE Instant On PoE switch to power the device.

Q: Can the S1T36A be managed without a controller?
A: Yes. The AP27 is managed entirely through the free HPE Instant On mobile app (iOS and Android) or the web portal at use.instant-on.hpe.com. There is no controller hardware required and no ongoing subscription fee.

Q: How many access points can I connect via Smart Mesh?
A: HPE Instant On Smart Mesh supports networks of up to 25 devices per site, allowing you to daisy-chain the S1T36A with other Instant On access points across a large outdoor area using a single wired uplink.

Q: Is the S1T36A compatible with existing non-Aruba Wi-Fi clients?
A: Yes. The S1T36A is Wi-Fi Certified 6 and backward-compatible with all 802.11a/b/g/n/ac devices. Any Wi-Fi-enabled smartphone, laptop, or IoT device will connect without configuration changes on the client side.
