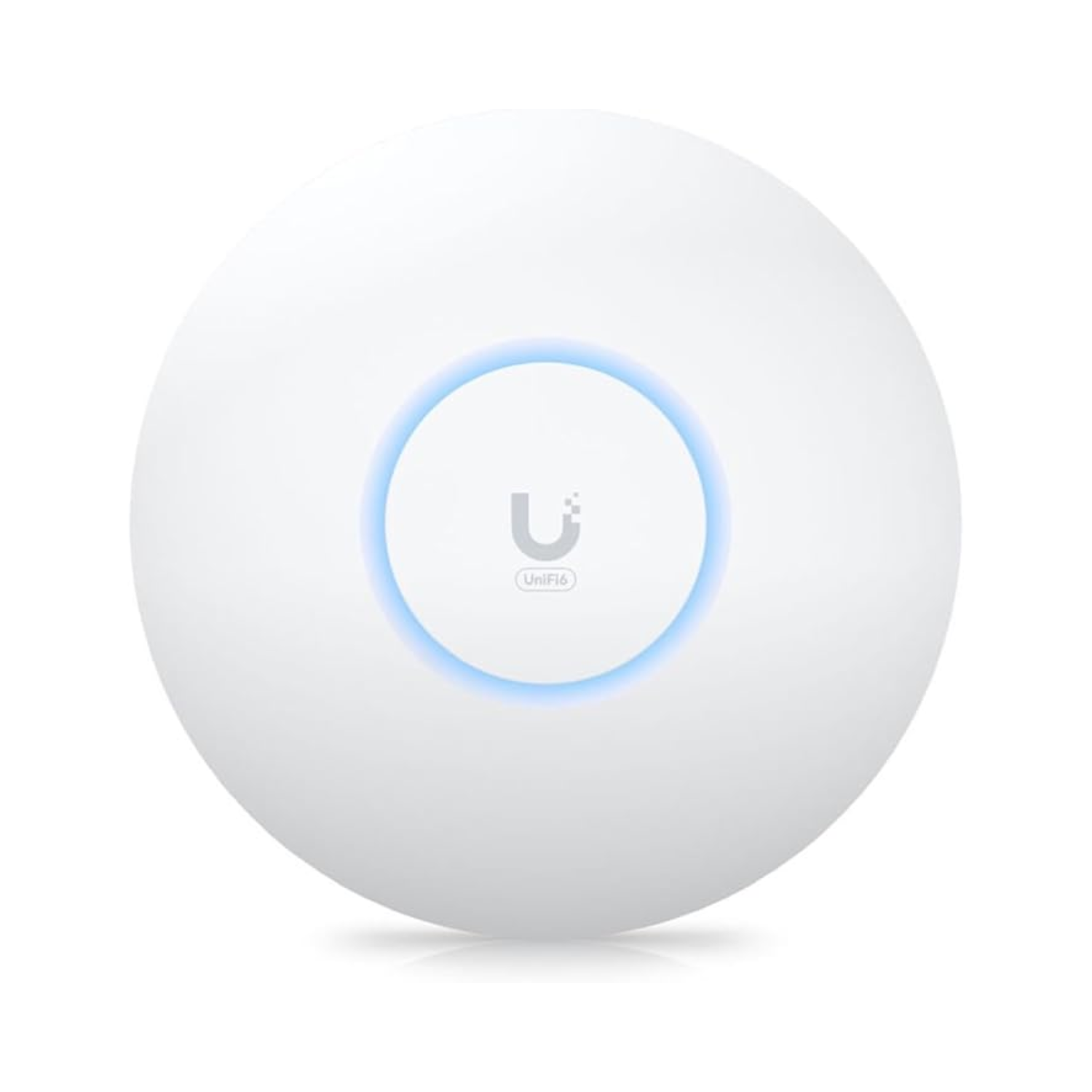

The Ubiquiti U6+ is a compact, ceiling-mounted WiFi 6 access point built for small and medium-sized businesses that need reliable, fast wireless coverage without complexity or high cost. Improving on the U6 Lite, the U6+ delivers dual-band WiFi 6 with higher throughput, better client handling, and a slimmer profile — all powered by a single standard PoE cable. For businesses deploying their first UniFi network or expanding an existing one, the U6+ delivers enterprise-grade performance at an accessible price point.

Key Features

The U6+ operates on both 2.4 GHz and 5 GHz WiFi 6 (802.11ax) bands with 2×2 MU-MIMO on each band. Maximum data rates reach 2.4 Gbps on 5 GHz using 160 MHz channel bandwidth, and 573.5 Mbps on 2.4 GHz using 40 MHz. Combined aggregate throughput is 2.97 Gbps — a meaningful step up from the U6 Lite’s performance ceiling, making the U6+ the better choice for offices with demanding per-device bandwidth requirements.

OFDMA (Orthogonal Frequency Division Multiple Access) allows the U6+ to divide channel bandwidth into smaller sub-channels and serve multiple clients within a single transmission window. In practice, this reduces the latency experienced by each connected device when many clients are active simultaneously — a critical improvement over WiFi 5 in dense environments like open-plan offices and meeting rooms.

The U6+ covers up to 1,500 ft² (140 m²) and handles 300+ concurrent clients, making it well-suited for single-floor office spaces, retail showrooms, clinics, and classrooms. Antenna gain sits at 5.4 dBi on 5 GHz and 3 dBi on 2.4 GHz, with TX power reaching 23 dBm on both bands for consistent coverage at range.

Power is delivered via a single 802.3af PoE input on the GbE RJ45 uplink port — maximum power draw is 9W. Standard 802.3af is sufficient, meaning the U6+ works with any entry-level PoE switch or injector without requiring PoE+ hardware. Both ceiling and wall mounts are included in the box. The circular form factor at Ø160 x 33 mm is thin, light at 338 g, and unobtrusive in any commercial space.

Security support includes WPA-PSK, WPA2, WPA3, and WPA-Enterprise with 802.1X for environments requiring RADIUS-based authentication. Up to 8 BSSIDs per radio allows network administrators to run multiple SSIDs — separating staff, guest, and IoT traffic — from a single physical AP. The U6+ integrates fully into the UniFi Network application for centralized management alongside switches, gateways, and other UniFi access points.

Tech Specs

• WiFi Standard: WiFi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac
• Bands: Dual-band — 2.4 GHz + 5 GHz
• Spatial Streams: 4 total (2×2 per band)
• Max Data Rate: 5 GHz — 2.4 Gbps (BW160) / 2.4 GHz — 573.5 Mbps (BW40)
• Aggregate Throughput: 2.97 Gbps
• Coverage Area: 1,500 ft² (140 m²)
• Max Clients: 300+ Uplink: 1x GbE RJ45 Power Method: 802.3af PoE (9W max)
• Mounting: Ceiling or Wall (both mounts included)
• Dimensions: Ø160 x 33 mm (Ø6.3 x 1.3 in)
• Weight: 338 g (without mount)
• Antenna Gain: 5 GHz — 5.4 dBi / 2.4 GHz — 3 dBi TX
• Power: 5 GHz — 23 dBm / 2.4 GHz — 23 dBm
• BSSIDs: 8 per radio
• Operating Temp: -30 to 60°C
• Security: WPA-PSK, WPA2, WPA3, WPA-Enterprise (802.1X)
• Enclosure: Polycarbonate and aluminium
• Management: UniFi Network Application

Use Cases

Small Business Offices: The U6+ covers a typical single-floor office space end to end with one unit. With band steering active, client devices are pushed to the faster 5 GHz band automatically, keeping video calls, cloud applications, and file syncing running at full speed. The guest network SSID isolates visitor traffic from the internal LAN without requiring a separate AP.

Retail Stores and Showrooms: A retail floor needs reliable coverage for staff tablets, POS terminals, inventory scanners, and customer-facing guest WiFi — all on the same AP. The U6+ handles 300+ concurrent clients across multiple SSIDs, and its compact ceiling-mount form factor keeps the hardware out of the customer’s line of sight.

Classrooms and Training Rooms: A single U6+ serves a full classroom of 30–40 students with laptops or tablets. OFDMA ensures each device gets a fair share of channel bandwidth, preventing the congestion and latency spikes common with older WiFi 5 access points in high-density learning environments. Centralized management via the UniFi Network app lets IT teams push firmware updates and monitor all access points from a single dashboard.

Healthcare and Clinics: Clinics running wireless workstations, patient check-in tablets, and VoIP handsets need fast, secure WiFi with minimum downtime. The U6+ delivers WPA3 and WPA-Enterprise security to protect sensitive patient data, and its 802.3af PoE power requirement means it works with any existing PoE-capable network infrastructure without hardware upgrades.

Why Buy from Jazz Cyber Shield

Jazz Cyber Shield is a specialist IT hardware reseller serving businesses across the USA, UK, Canada, and Australia. Every Ubiquiti product we stock is sourced through authorized distribution channels, ensuring genuine hardware with valid manufacturer warranty. We do not sell grey-market or repackaged goods. Our team focuses exclusively on enterprise and SMB networking hardware — when you buy the U6+ from Jazz Cyber Shield, you receive accurate specs, fast dispatch, and support from people who understand the UniFi ecosystem.

Building a full UniFi network? Browse our complete range of Ubiquiti Access Points ( https://jazzcybershield.com/product-category/access-points/ ) for ceiling, wall, and outdoor options to cover every area of your site. To pair your U6+ with the right PoE switch, explore our Network Switches ( https://jazzcybershield.com/product-category/switches/ ) for compatible UniFi and third-party PoE switching options.

For the full U6+ datasheet with complete RF specifications and regulatory certifications, visit the official Ubiquiti datasheet page ( https://dl.ui.com/ds/u6+_ds.pdf ).

Frequently Asked Questions

Q: What is the difference between the U6+ and the U6 Lite?
A: The U6+ improves on the U6 Lite with higher 5 GHz throughput — reaching 2.4 Gbps using 160 MHz channel bandwidth compared to the U6 Lite’s 1.2 Gbps maximum. Both are dual-band WiFi 6 APs with 2×2 MIMO and 802.3af PoE input, but the U6+ delivers meaningfully better real-world speeds for bandwidth-heavy devices and applications.

Q: Does the U6+ require a UniFi controller to operate?
A: The U6+ is managed through the UniFi Network application, which can run on a UniFi Cloud Gateway such as the UDR or UDM Pro, a self-hosted server, or Ubiquiti’s cloud management portal. No dedicated on-site controller hardware is required for small deployments using cloud management.

Q: What PoE standard does the U6+ require?
A: The U6+ requires only 802.3af PoE — the most common and widely available PoE standard. It draws a maximum of 9W and works with any standard 802.3af PoE switch or PoE injector. PoE+ (802.3at) switches are also compatible and fully supported.

Q: Can the U6+ be used outdoors?
A: No. The U6+ is rated for indoor use only, with an operating temperature range of -30 to 60°C. For outdoor deployments, Jazz Cyber Shield stocks dedicated Ubiquiti outdoor access points with weatherproof enclosures designed for exterior installation.
