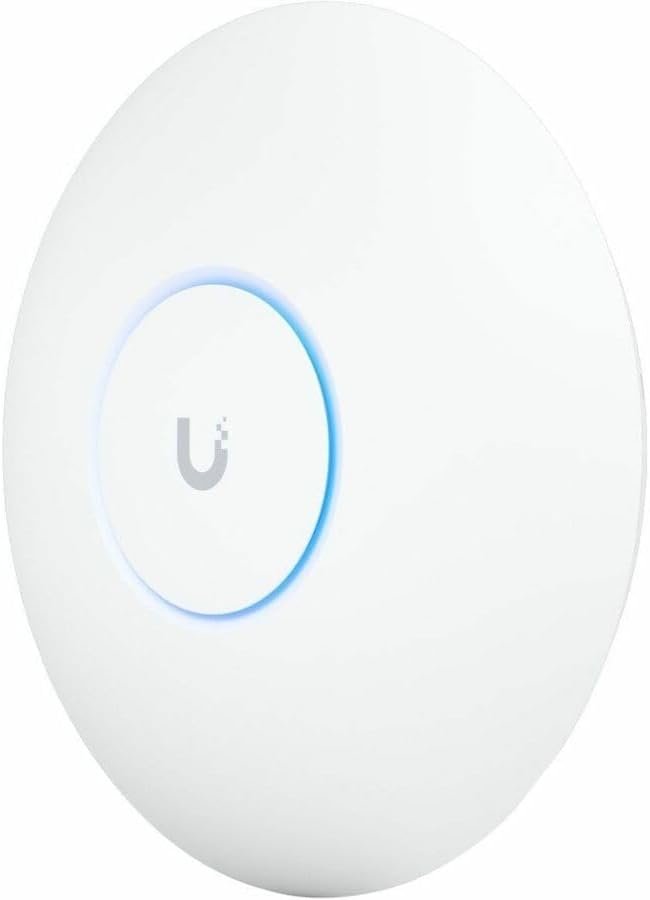

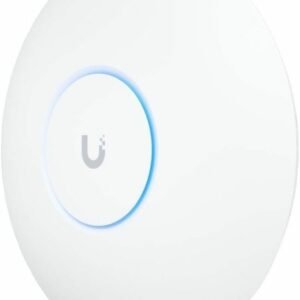

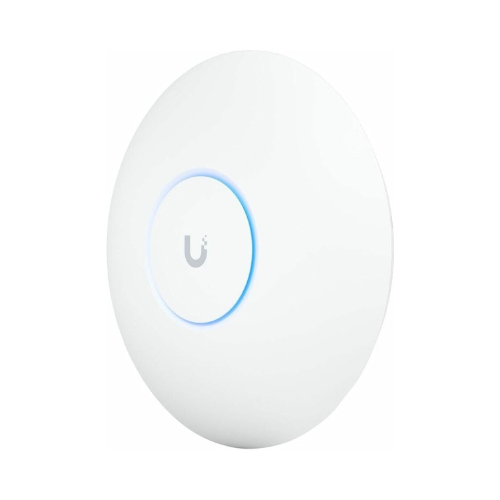

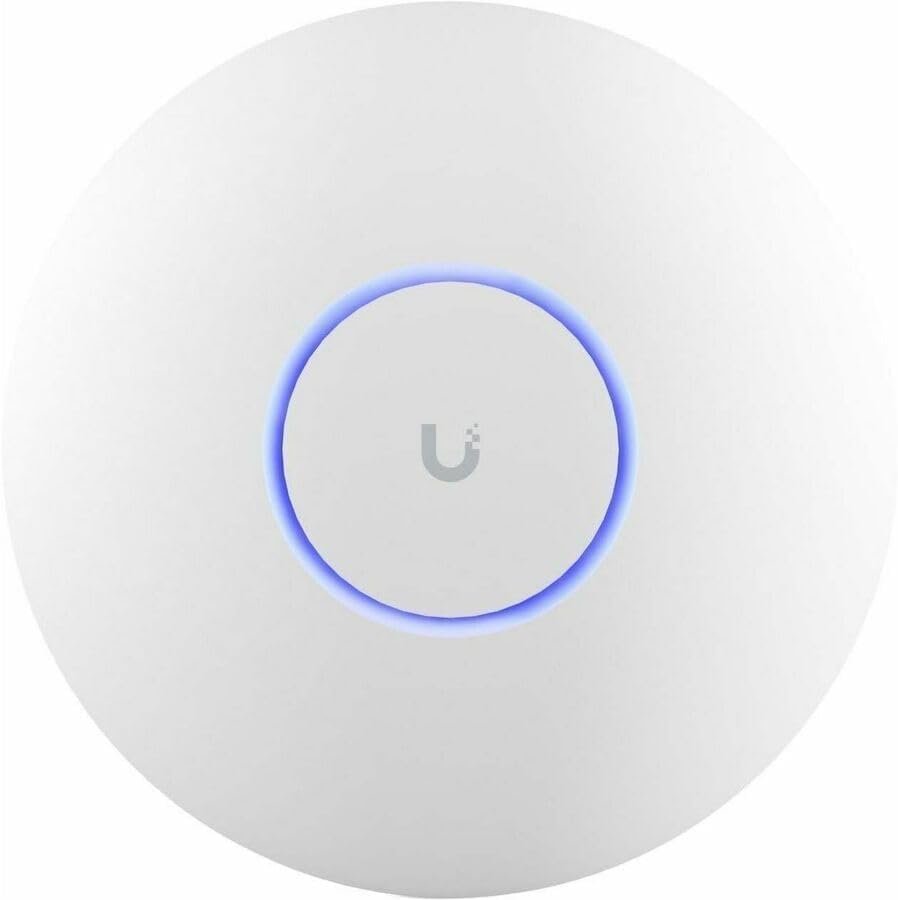

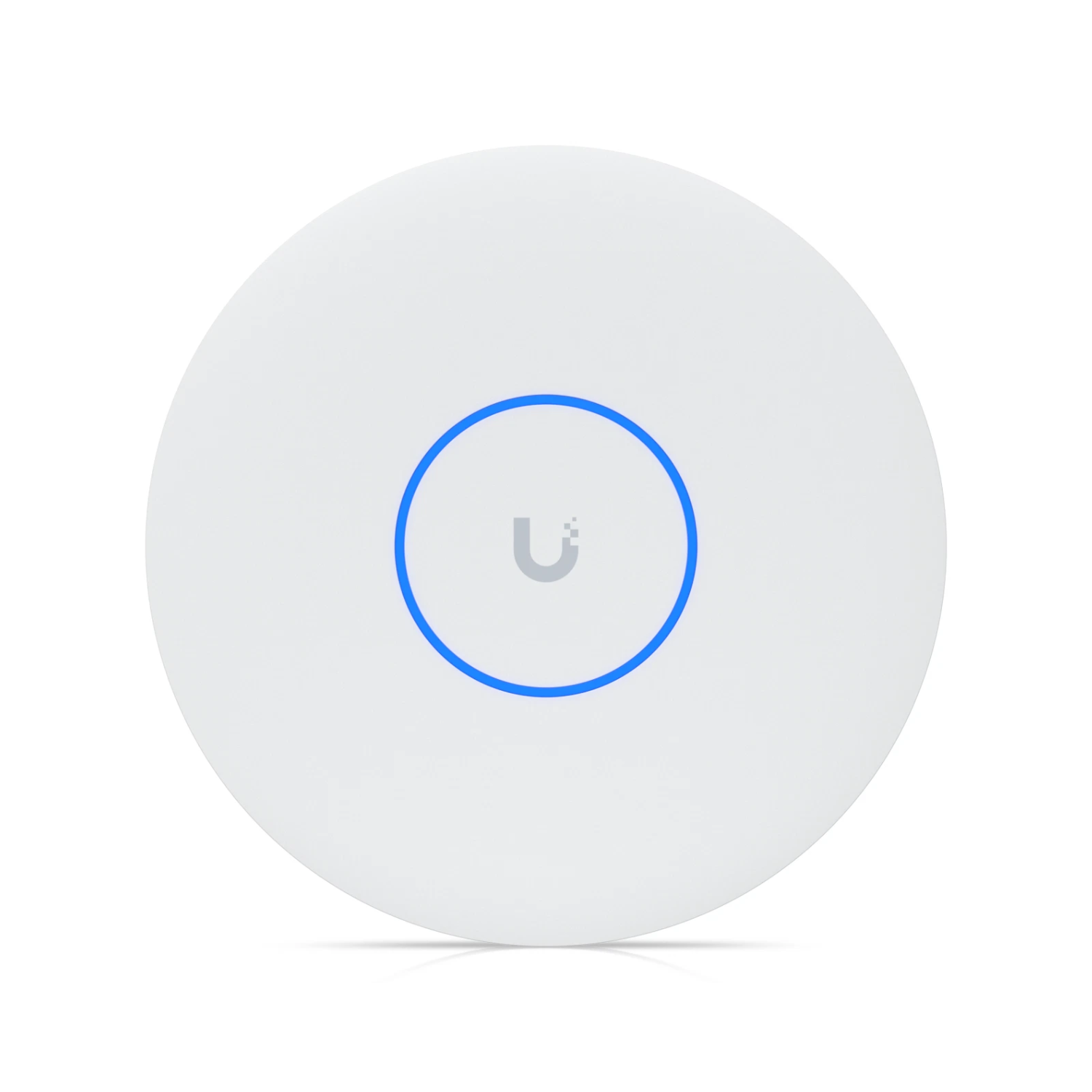

The Ubiquiti U7 Pro XG is a ceiling-mounted, tri-band WiFi 7 access point engineered for enterprise networks that demand maximum throughput, multi-gigabit uplink speed, and seamless management at scale. Built on the 802.11be WiFi 7 standard, the U7 Pro XG operates simultaneously across the 2.4 GHz, 5 GHz, and 6 GHz bands, delivering a combined aggregate throughput of up to 10.8 Gbps. With a 10 GbE uplink — the same found in Ubiquiti’s enterprise E7 lineup — the U7 Pro XG brings flagship-class wired backhaul to a mid-tier price point, making it the right choice for demanding deployments across corporate offices, universities, hotels, and healthcare facilities.

Key Features

The U7 Pro XG runs WiFi 7 (802.11be) across all three bands with 2×2 MU-MIMO configurations on each. Maximum data rates reach 5.8 Gbps on the 6 GHz band using 320 MHz channel bandwidth, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz. The combined aggregate throughput across all three bands hits 10.8 Gbps — significantly ahead of previous-generation WiFi 6 access points.

Multi-Link Operation (MLO) is supported, allowing compatible WiFi 7 client devices to bond multiple bands into a single logical connection. This reduces latency and increases effective throughput for devices that support the feature, with broader client support expanding across the industry throughout 2025 and beyond.

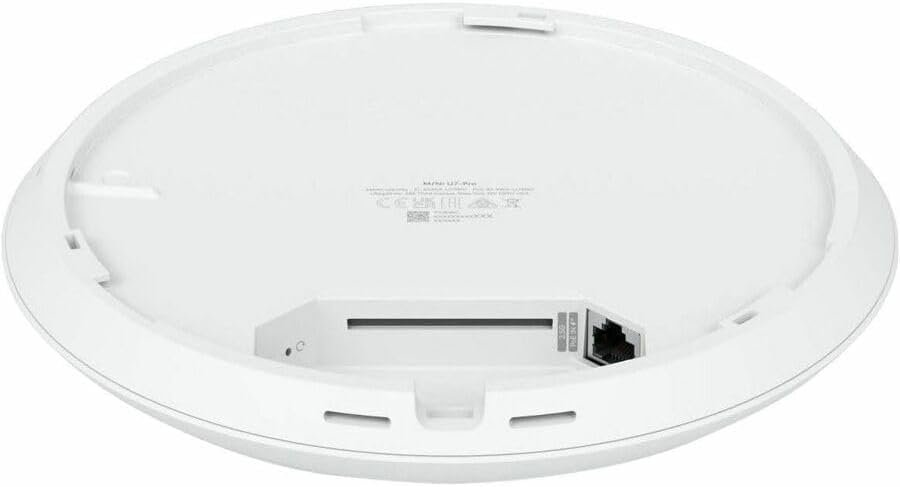

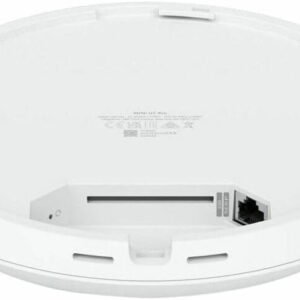

The 10 GbE uplink port is the defining hardware upgrade over the standard U7 Pro, which ships with a 2.5 GbE uplink. For networks running 10GbE core switches, the U7 Pro XG eliminates the bottleneck entirely — the wired uplink no longer limits wireless performance in bandwidth-heavy deployments. Power is supplied via PoE+ with a maximum draw of 22W, compatible with any 802.3at PoE+ switch.

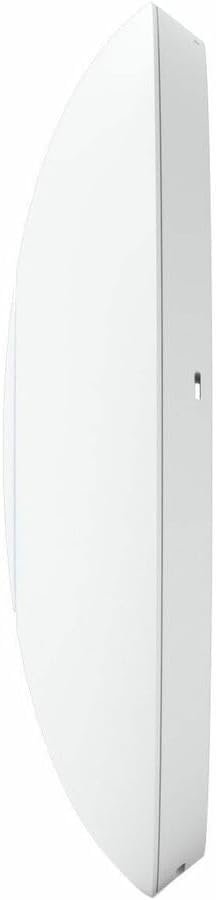

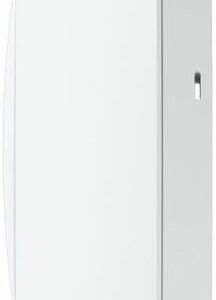

The U7 Pro XG covers up to 1,500 ft² (140 m²) and handles 300+ concurrent clients. Antenna gain sits at 6 dBi on 6 GHz, 5 dBi on 5 GHz, and 4 dBi on 2.4 GHz. The slim circular form factor measures Ø206 x 32.5 mm — thinner than the standard U7 Pro — and installs flush against the ceiling or wall using the included lite mount.

Advanced network features include 802.11r fast roaming for seamless client handoff between access points, 802.11k radio resource management, 802.11v BSS transition management, band steering, wireless meshing, guest network isolation, captive portal support, Passpoint (Hotspot 2.0), voucher authentication, and up to 8 BSSIDs per radio. All of these are configured and monitored centrally through the UniFi Network application.

Tech Specs

• WiFi Standard: WiFi 7 (802.11be), backward compatible with WiFi 6/5/4
• Bands: Tri-band — 2.4 GHz, 5 GHz, 6 GHz
• Spatial Streams: 6 (2×2 per band)
• Max Data Rate: 6 GHz — 5.8 Gbps (BW320) / 5 GHz — 4.3 Gbps (BW240) / 2.4 GHz — 688 Mbps (BW40)
• Aggregate Throughput: 10.8 Gbps
• Coverage Area: 1,500 ft² (140 m²)
• Max Clients: 300+ Uplink: 1x 10/5/2.5/1 GbE RJ45
• Power Method: 802.3at PoE+ (22W max)
• Mounting: Ceiling or Wall (Lite Mount included)
• Dimensions: Ø206 x 32.5 mm (Ø8.1 x 1.3 in)
• Antenna Gain: 6 GHz — 6 dBi / 5 GHz — 5 dBi / 2.4 GHz — 4 dBi
• TX Power: 6 GHz — 24 dBm / 5 GHz — 26 dBm / 2.4 GHz — 23 dBm BSSIDs: 8 per radio Security: WPA2, WPA3, WPA-Enterprise
• Features: MLO, MU-MIMO, OFDMA, Band Steering, Fast Roaming, Mesh, Passpoint

Use Cases

Enterprise Offices: Open-plan offices deploying dozens of wireless devices per floor need access points that handle high client density without congestion. The U7 Pro XG serves 300+ concurrent clients across three bands, with band steering pushing clients to the least-congested frequency automatically. With 10 GbE backhaul, the wired infrastructure keeps pace with the wireless load.

University Campuses: Lecture halls and student common areas see extreme device density during peak hours. The U7 Pro XG’s OFDMA scheduling splits each channel into sub-channels, letting the AP serve multiple clients in a single transmission slot. This reduces per-client latency even when dozens of devices are active simultaneously.

Hotels and Hospitality: Guests expect fast, reliable WiFi throughout a property. The U7 Pro XG covers up to 1,500 ft² per unit, and with fast roaming enabled, guests moving through hallways and floors maintain uninterrupted connections. The captive portal and voucher authentication features let hotel IT teams manage guest access without complex RADIUS infrastructure.

Healthcare and Clinics: Clinical environments running wireless medical tablets, infusion pumps, and workstations-on-wheels need reliable, low-latency WiFi. The U7 Pro XG’s 802.11r and 802.11k roaming support ensures devices stay connected as staff move between rooms, while WPA3 and WPA-Enterprise secure sensitive data in transit.

Why Buy from Jazz Cyber Shield

Jazz Cyber Shield is a specialist IT hardware reseller serving businesses across the USA, UK, Canada, and Australia. Every Ubiquiti product we stock is sourced from authorized distribution channels — you receive genuine hardware backed by Ubiquiti’s manufacturer warranty. We are not a general electronics marketplace. Our catalog focuses on enterprise and SMB networking gear, which means our listings are accurate, our specs are verified, and our team understands what you are buying.

If you are building a complete UniFi WiFi 7 network, browse our full selection of Ubiquiti Access Points ( https://jazzcybershield.com/product-category/access-points/ ) alongside the matching 10GbE switching infrastructure in our Network Switches ( https://jazzcybershield.com/product-category/switches/ ) to ensure your uplink ports match the U7 Pro XG’s 10 GbE capability.

For the full U7 Pro XG datasheet including regulatory certifications and detailed RF specifications, visit the official Ubiquiti tech specs page ( https://techspecs.ui.com/unifi/wifi/u7-pro-xg ).

Frequently Asked Questions

Q: What is the difference between the U7 Pro XG and the standard U7 Pro?
A: The core WiFi 7 radio specs are identical between the two models — both are tri-band with 6 spatial streams and 10.8 Gbps aggregate throughput. The key difference is the uplink port. The U7 Pro ships with a 2.5 GbE uplink, while the U7 Pro XG upgrades this to a full 10 GbE multi-rate port (10/5/2.5/1 GbE). The U7 Pro XG is also slightly thinner in profile at 32.5 mm vs 46 mm depth.

Q: Does the U7 Pro XG require a UniFi controller or console?
A: The U7 Pro XG is managed through the UniFi Network application, which runs on a UniFi Cloud Gateway, a self-hosted server, or Ubiquiti’s cloud management platform. A dedicated hardware console is not strictly required, but is recommended for large deployments requiring persistent control.

Q: What PoE switch do I need to power the U7 Pro XG?
A: The U7 Pro XG requires an 802.3at PoE+ switch port with at least 22W of available power delivery. A PoE++ switch is not required. For best results with the 10 GbE uplink, use a switch with a matching 10 GbE SFP+ or RJ45 port such as Ubiquiti’s USW-Pro or UniFi XG series switches.

Q: Does the U7 Pro XG support wireless mesh without a wired uplink?
A: Yes. The U7 Pro XG supports wireless meshing natively within the UniFi ecosystem. Mesh performance is best when the primary uplink AP is wired, but satellite units can backhaul wirelessly when running cable is not feasible.
