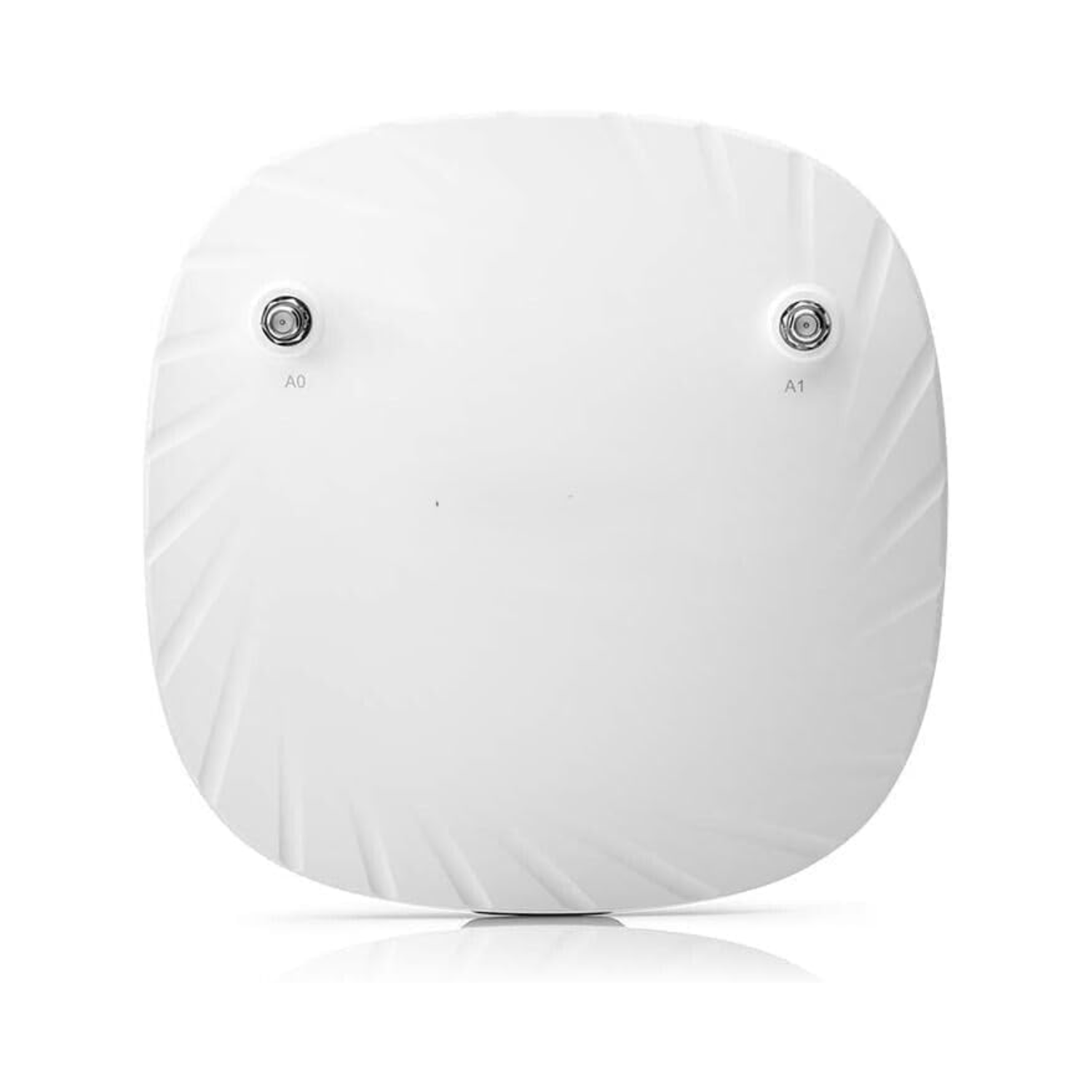

HPE R2H22A – Aruba AP504 Access Point
Model:
Detail:
Condition:
Price:
Original price was: $789.00.$291.00Current price is: $291.00.
Warranty:
Quantity:
Shipping:
Payment:
24/7 Online Service
+1 (512) 885-5387
info@jazzcybershield.com
30 Days Return & Refund
You may return a product within 30 days of the delivery date and the proccessing time is 15 days.
Best Price Guarantee
Found it cheaper? Let us know! We're committed to offering the lowest prices around.
Product Detail
- Enhanced performance thanks to the next generation of wireless connectivity standards used, Wi-Fi 6. Еasier, faster and has a higher throughput.
- Two bands operation: 2.4GHz and 5GHz frequencies for better performance.
- Security Capabilities: Your network is secure thanks to advanced parameters.
- Management through the cloud: Ease network management through the use of Aruba Central.
- Usable and Extensible: Provides effortless connectivity in heavy device usage areas.
HPE R2H22A – Aruba AP504 Access Point
HPE R2H22A, also known as Aruba AP504, is a Wi-Fi 6 (802.11ax) indoor access point suitable for medium-sized offices, schools, retail spaces, and other similar environments. It is part of the 500 series from Aruba which promises to provide a solid and safe wireless connection.
Salient Features:
- Wi-Fi 6: Brought faster speeds, higher capacity and efficiency over the former standards of Wi-Fi.
- Dual Opposing Bands: Provides for both 12 4GHz and 5 GHz frequency with maximized performance and coverage.
- Multiple User-Multiple Input and Multiple Output (MU-MIMO): Provides the capability of delivering data simultaneously to multiple users, thereby reducing latency and increasing the overall network efficiency.
- Orthographic Frequency Division Multiple Access (OFDMA): Schedules and allows multiple users access of low bandwidth latency.
- Bluetooth 5: Compatibility with Bluetooth 5 for enhanced IoT capability.
- Dynamic Segmentation: Improves security by keeping different devices and their corresponding traffic separate from one another depending on set user roles and policies.
- Cloud Managed: AP504 can be quickly deployed and managed using Aruba Central, an efficient, cloud-based management tool.
- Power over Ethernet (PoE): Encourages faster and simple installation process by combining both power and data through one cable only.
Ideal Use Cases:
- Mid-sized Offices: Ensures that there is good Wi-Fi connection for the employees and visitors alike.
- Schools and Universities: Fulfills the demands of crowded places such as schools and their many users and devices.
- Retail Stores: Help maintain the constant connection customers and point of sale systems.
- Healthcare Facilities: Standard and dependable Wi-Fi connection for the staff and patients.
- Hospitality Venues: Offers guests fast Wi-Fi in hotels, restaurants, and other public indoor spaces.
Additional Information:
- Manufacturer: Hewlett Packard Enterprise (HPE)
- Model Number: R2H22A
- Product Line: Aruba 500 Series
- Form Factor: Indoor Ceiling-Mountable
- Antennas: Dual-Band
R2H22A Specification
R2H22A Specification |
|
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.2 Gbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Aggregate throughput: 1.774 Gbps |
| Capacity | Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8 |
| Status Indicators | System, status |
| Encryption Algorithm | SSL, WPA, WPA2, WPA3 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 – 93% (non-condensing) |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 6.3 in |
| Depth | 6.3 in |
| Height | 1.5 in |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T – RJ-45 ¦ 1 x USB 2.0 – Type A ¦ 2 x antenna – RP-SMA x 2 ¦ 1 x console – micro-USB |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Consumption Operational | 8.9 Watt |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
