Sale!
Name:
JL261A
Model:
HP Aruba JL261A
Detail:
Condition:
New
Price:
Original price was: $2,500.00.$2,167.00Current price is: $2,167.00.
Warranty:
Quantity:
Shipping:
Payment:
24/7 Online Service
+1 (512) 885-5387
info@jazzcybershield.com
30 Days Return & Refund
You may return a product within 30 days of the delivery date and the proccessing time is 15 days.
Best Price Guarantee
Found it cheaper? Let us know! We're committed to offering the lowest prices around.
Product Detail
- High-Performance Switching: Delivers high-speed data transfer and low latency for optimal network performance.
- PoE+ Support: Provides up to 740W of PoE+ power to power devices like IP phones, wireless access points, and security cameras.
- Advanced Security: Protects your network with robust security features, including port security, 802.1X authentication, and access control lists (ACLs).
- Layer 3 Switching: Supports advanced routing features like static and dynamic routing, enabling complex network configurations.
- Easy Management: Intuitive web-based interface for simple configuration and monitoring.
- Scalability: Can be easily expanded to meet your growing network needs.
- Reliability: Ensures continuous network operation with redundant power supplies and fan modules.

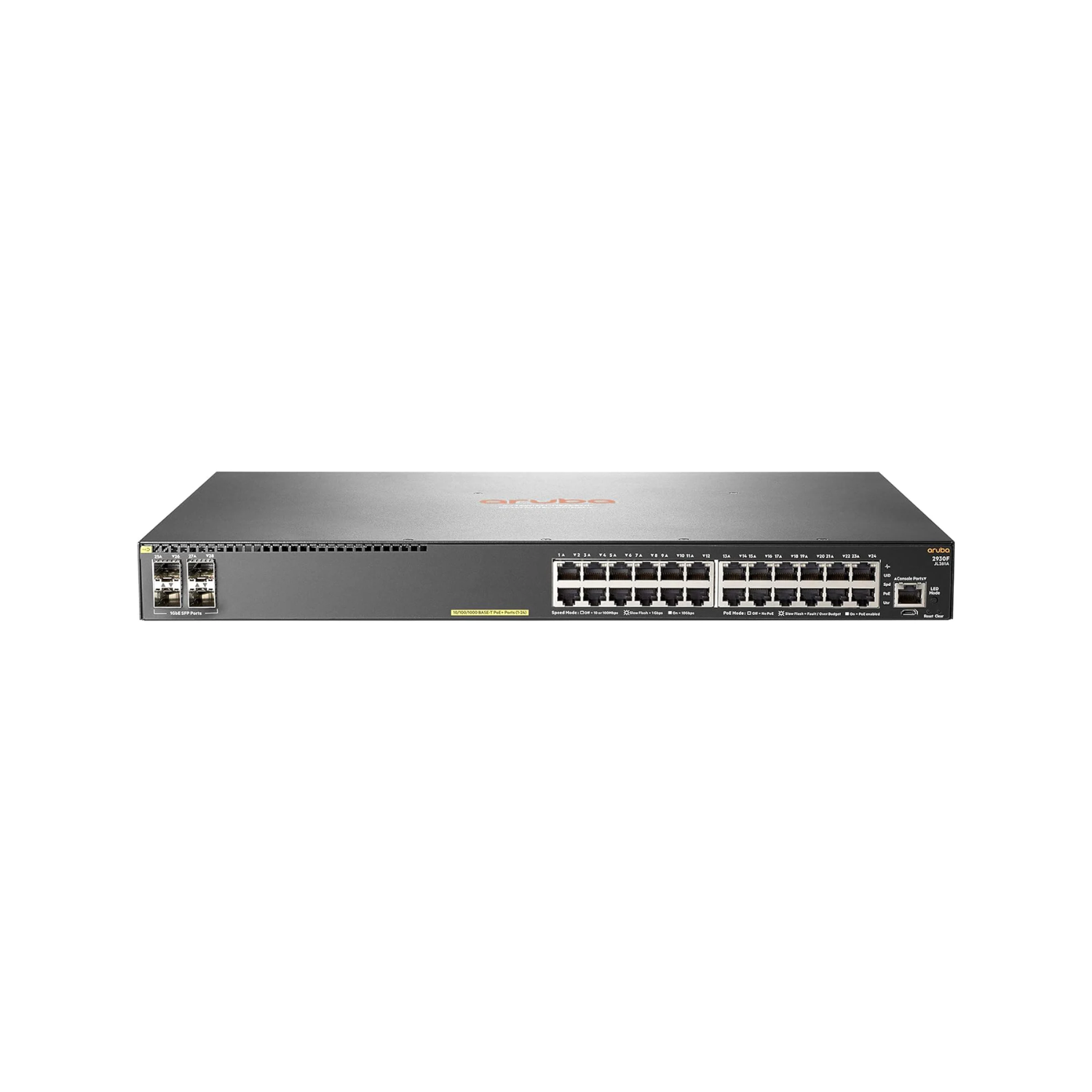

The Aruba 2930F 24G PoE+ 4SFP Switch (JL261A) is a high-performance, Layer 3 switch designed to deliver reliable and secure network connectivity for small and medium-sized businesses. This versatile switch offers a range of features to meet the evolving needs of modern networks.
JL261A Specification |
|
| Type | Aruba 2930F 24G PoE+ 4SFP Switch |
| System specifications | |
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
| Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
| Memory and processor | Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC |
| Management | Aruba AirWave Network Management; IMC – Intelligent Management Center
Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
| Performance specifications | |
| 1000 Mb Latency | < 3.8 μs (64-byte packets) |
| 10 Gbps Latency | N/A |
| Throughput | up to 41.7 Mp/s |
| Switching capacity | 56 Gb/s |
| Routing table size | 10000 entries (IPv4), 5000 entries (IPv6) |
| MAC address table size | 32768 entries |
| Physical specifications | |
| Dimensions | 4.39 x 44.25 x 30.42 cm ( 1.73 x 17.42 x 11.98 in)
1U height |
| Electrical specifications | |
| 80plus.org Certification | Silver |
| Description | N/A |
| Maximum heat dissipation | 1601.49 kJ/hr (1518 BTU/hr) |
| Voltage | 100 – 127 / 200 – 240 V ac, rated |
| Current | 4.9/2.4 A |
| Maximum power rating | 445 W |
| Idle power | 36.8 W |
| Frequency | 50/60 Hz |
| PoE power | 370 W PoE+ |
| Environmental specifications | |
| Operating temperature | 0°C to 45°C (32°F to 113°F)
up to 5000 Feet – 0C to 40C (32F to 104F) up to 10000 Feet |
| Operating relative humidity | 15% to 95% @ 40°C ( 104°F)
noncondensing |
| Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F)
up to 15000 Feet |
| Nonoperating/Storage temperature | 15% to 95% @65°C ( 149°F)
noncondensing |
| Acoustic | Power: 54.1 dB, Pressure: 40.6 dB |
| Airflow direction | Side-to-side |
| Safety certifications | |
| Safety | UL 60950-1, 2nd Edition
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013 IEC 60950-1:2005 +A1:2009 +A2:2013 CSA 22.2 No. 60950-1-07 2nd EN 60825-1:2007 / IEC 60825-1:2007 Class 1 |
| Emissions | EN 55022:2010/CISPR 22 Class A
FCC CFR 47 Part 15 Class A VCCI Class A; ICES-003 Class A CNS 13438 |
| Immunity | Generic:EN 55024:2010/CISPR 24
ESDIEC 61000-4-2 RadiatedIEC 61000-4-3 EFT/BurstIEC 61000-4-4 SurgeIEC 61000-4-5 ConductedIEC 61000-4-6 Power frequency magnetic fieldIEC 61000-4-8 Voltage dips and interruptionsIEC 61000-4-11 HarmonicsIEC/EN 61000-3-2 FlickerIEC/EN 61000-3-3 |
