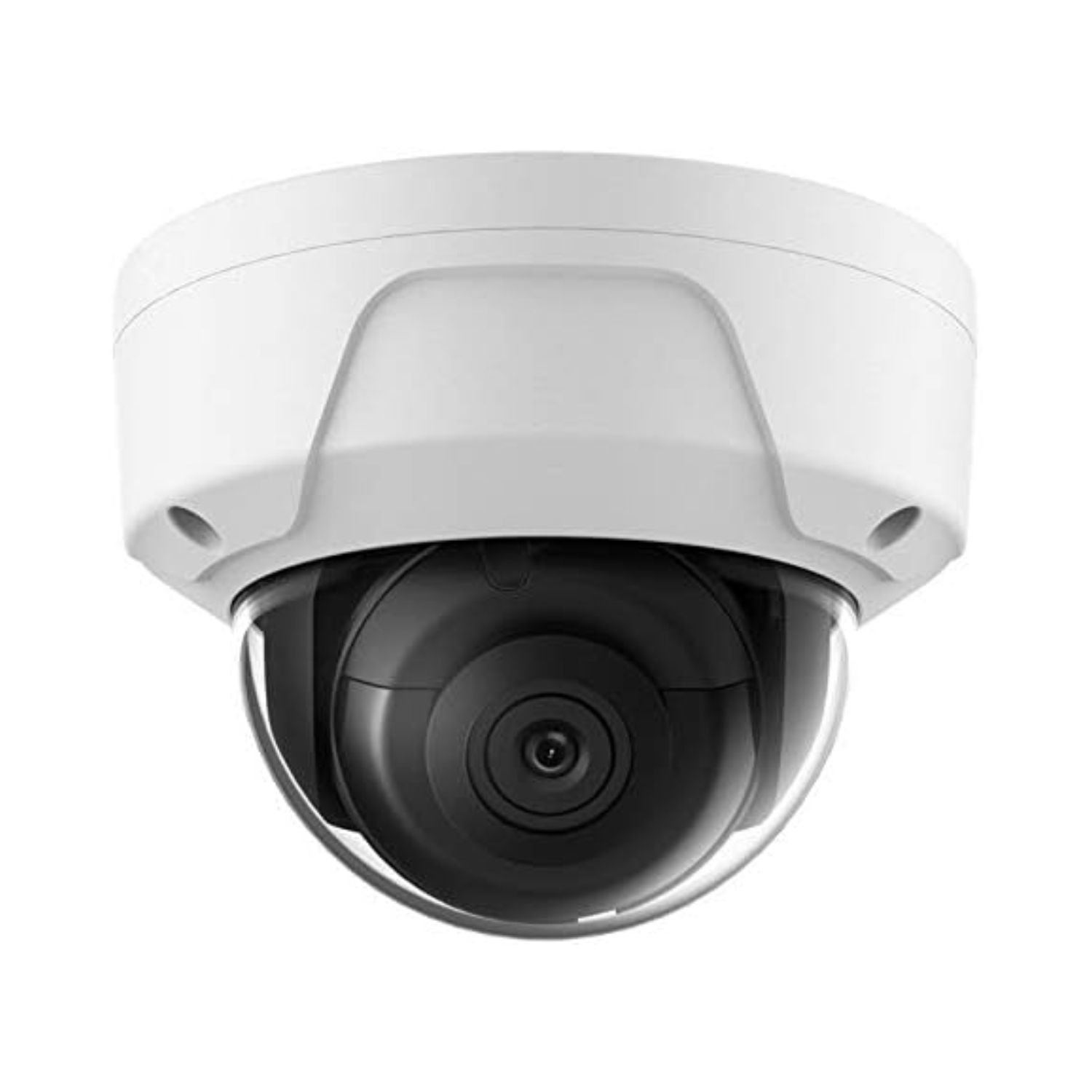

Hikvision DS-2CD2143G0-I 4MP IR Fixed Dome Network Camera — Professional Outdoor Surveillance

When it comes to reliable, high-performance outdoor surveillance, the Hikvision DS-2CD2143G0-I stands as one of the most trusted 4MP IP dome cameras in the market. Designed for commercial, industrial, and enterprise environments, this camera delivers crystal-clear imaging, robust weatherproof construction, and advanced video intelligence — making it an ideal choice for businesses across the USA, UK, Canada, and Australia.

Whether you are securing a retail store, warehouse, office building, or parking lot, the DS-2CD2143G0-I provides the professional-grade protection your property demands.

Superior 4MP Image Quality

At the heart of this camera is a 1/3-inch Progressive Scan CMOS sensor capable of recording at 2688×1520 resolution at 30 frames per second. This level of detail ensures that faces, license plates, and fine details are clearly captured even in wide-angle shots. The camera supports multiple lens options — 2.8mm, 4mm, 6mm, and 8mm — allowing you to choose the right field of view for your specific installation requirements.

The 120dB True Wide Dynamic Range (WDR) technology is particularly valuable for challenging lighting environments. Entrances, windows, and outdoor areas with mixed sunlight and shadow are handled effortlessly, delivering balanced exposure across the entire frame.

Advanced H.265+ Video Compression

The DS-2CD2143G0-I uses H.265+ compression technology, which reduces bandwidth consumption and storage requirements by up to 50% compared to standard H.264 encoding — without any sacrifice in image quality. This makes it an especially cost-effective choice for businesses managing large NVR setups or limited network bandwidth.

It supports three simultaneous video streams, giving you the flexibility to run high-resolution recording alongside lower-bandwidth live viewing streams across multiple devices.

Reliable Night Vision & Low-Light Performance

Equipped with built-in infrared LEDs with a 30-meter range, the camera maintains full visibility in complete darkness — achieving 0 Lux with IR. The automatic IR cut filter switches seamlessly between day and night modes, ensuring natural color reproduction during the day and sharp monochrome imaging at night.

For low-light conditions just above zero Lux, the camera performs at 0.018 Lux @ F1.6 with AGC ON, making it suitable for dimly lit areas such as corridors, stairwells, and outdoor perimeters.

IP67 Weatherproof & IK10 Vandal-Proof Protection

Built with a full metal housing, the Hikvision DS-2CD2143G0-I carries an IP67 ingress protection rating, meaning it is fully protected against dust and withstands water jets from any direction. The IK10 vandal-proof rating ensures the camera dome can resist up to 20 joules of impact force — making it extremely difficult to disable physically.

This level of protection makes it the right choice for exposed outdoor mounting points, public-facing areas, and high-risk locations.

Smart Detection & Alarm Capabilities

Beyond basic recording, this camera supports smart video analytics including:

• Line crossing detection
• Intrusion detection
• Face detection
• Motion detection & video tampering alarms

Alarm triggers can be configured for network disconnection, IP address conflict, illegal login attempts, and storage errors — giving your security team proactive alerts before issues escalate.

Easy Installation with PoE Support

The camera supports Power over Ethernet (PoE), meaning a single Ethernet cable carries both power and data. This dramatically simplifies installation, reduces cable clutter, and lowers overall deployment costs. It also supports 12V DC power input as an alternative.

The 3-axis bracket adjustment (pan 0°–360°, tilt 0°–75°, rotation 0°–360°) allows precise aiming during installation, ensuring optimal coverage of your target area.

An on-board microSD/SDHC/SDXC card slot (up to 128GB) provides edge storage capability, so your footage is protected even during network outages.

Compatibility & Integration

The Hikvision DS-2CD2143G0-I is fully compatible with Hikvision NVRs, the iVMS-4200 client software, Hik-Connect mobile app, and third-party ONVIF-compliant VMS platforms. It supports a comprehensive protocol stack including TCP/IP, HTTPS, RTSP, SMTP, SNMP, 802.1X, and more — ensuring seamless integration into any enterprise network environment.

For businesses looking to build a complete IP surveillance ecosystem, explore our full range of Hikvision security cameras and networking hardware at Jazz Cyber Shield. Our team sources enterprise-grade equipment for deployments of all sizes.

Want to Learn More About IP Camera Selection?

Before purchasing, it helps to understand the differences between IP camera types, resolution standards, and outdoor rating systems. Our security experts have put together a detailed guide on how to choose the right IP camera for your business — covering everything from lens selection to PoE switches and NVR compatibility.

For full technical documentation and firmware updates, visit the official Hikvision DS-2CD2143G0-I product page.

Technical Specifications Summary
