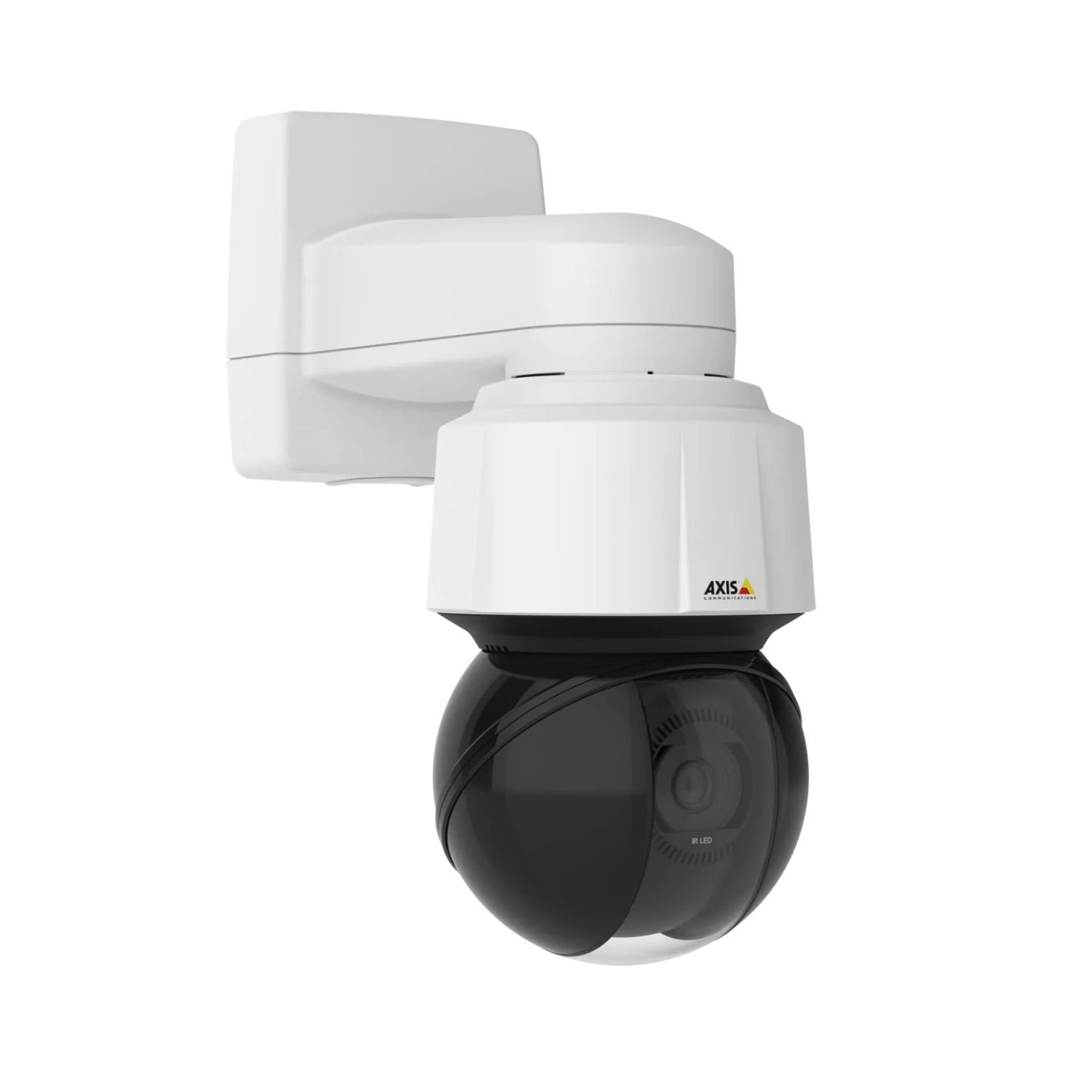

Axis Q6135-LE PTZ Network Camera – Professional 4K LPR Surveillance System
Comprehensive Product Description
The Axis Q6135-LE represents the pinnacle of professional PTZ camera technology, engineered for mission-critical surveillance applications requiring superior image quality, intelligent analytics, and rugged reliability. This high-performance camera combines 4K Ultra HD resolution with advanced pan-tilt-zoom functionality and specialized license plate recognition capabilities.
Key Features & Benefits
1. Forensic-Grade Imaging System
-
8.3MP 4K Ultra HD resolution (3840 × 2160 @ 30fps)
-
20x optical zoom (5.3-106mm motorized varifocal lens)
-
120dB Wide Dynamic Range (True WDR)
-
3D Digital Noise Reduction (DNR)
-
Mechanical IR cut filter for accurate color reproduction
2. Advanced License Plate Recognition
-
Dedicated LPR mode with optimized shutter control
-
Captures plates at vehicle speeds up to 250 km/h (155 mph)
-
95%+ accuracy rate under optimal conditions
-
ANPR database integration capability
3. Ruggedized Outdoor Design
-
IP66 weatherproof and IK10 vandal-resistant
-
Marine-grade 316 stainless steel hardware
-
Operates in extreme temperatures (-40°C to 50°C)
-
Pressurized housing prevents condensation
4. Intelligent Video Analytics
-
Built-in AXIS License Plate Recognition
-
Motion detection with configurable zones
-
Tampering alarm (defocus/spray/cover detection)
-
People/vehicle counting capabilities
Technical Specifications
Category | Detailed Specifications |
---|---|
Image Sensor | 1/2.8″ progressive scan CMOS |
Resolution | 3840 × 2160 (4K UHD) @ 30 fps |
Lens Options | 5.3–106 mm (20× optical zoom) |
PTZ Performance | 360° continuous pan, 180° tilt |
IR Illumination | Up to 100m (328 ft) night vision |
Video Compression | H.264, H.265, MJPEG |
Network Interface | PoE+ (802.3at), 10/100/1000 Mbps |
Storage Options | MicroSD (256GB), NAS, cloud |
Power Consumption | 18W max (PoE+) |
Dimensions | 220 × 175 × 406 mm |
Weight | 6.5 kg |
Advanced Technical Details
Optical & Imaging Performance
-
Pixel size: 2.9 μm × 2.9 μm
-
Minimum illumination: 0.05 lux (color), 0.005 lux (B/W)
-
Shutter speed: 1/3s to 1/32,000s (LPR mode: 1/1,000s)
-
Day/Night functionality with mechanical IR cut filter
PTZ Mechanics
-
Pan speed: 0.1° to 120°/s
-
Tilt speed: 0.1° to 120°/s
-
300 preset positions
-
Auto-flip function for 360° continuous rotation
-
Guard tour with 8 patterns
Network & Cybersecurity
-
ONVIF Profile S & G compliant
-
AXIS Camera Application Platform
-
HTTPS encryption, IEEE 802.1X authentication
-
Axis Edge Vault for secure credential storage
-
Signed firmware with secure boot
Installation & Integration
Recommended Deployment Scenarios
-
Traffic monitoring and enforcement
-
Critical infrastructure protection
-
Perimeter security for industrial sites
-
Smart city surveillance
-
Port and border control
System Requirements
-
Network Bandwidth: 8-12 Mbps for 4K main stream
-
PoE Switch: IEEE 802.3at compliant
-
Storage: ~42GB/day at 4K/15fps (H.265)
-
Viewing Station: 4K monitor recommended
Why Choose Axis Q6135-LE?
For Security Professionals:
-
Reduced total cost of ownership (fewer cameras needed)
-
Future-proof investment with firmware upgradability
-
Simplified maintenance through remote diagnostics
For End Users:
-
Evidentiary-grade video quality
-
Reliable 24/7 operation in any weather
-
5-year product lifecycle with extended support
Package Contents
-
Axis Q6135-LE PTZ Network Camera
-
Quick installation guide
-
Mounting template
-
Hex key set
-
Cable gland kit
-
Safety rope
