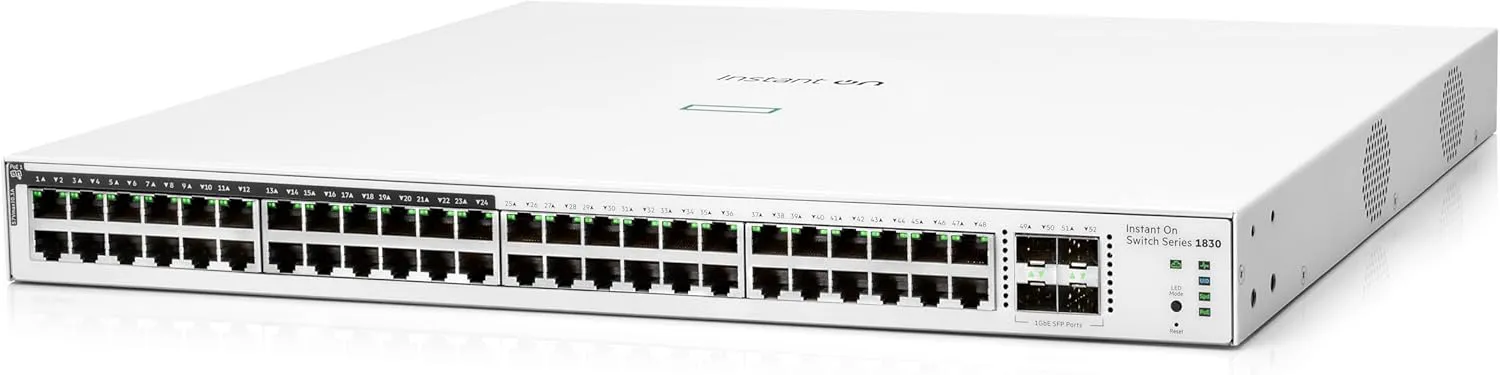

Aruba JL815A – Instant On 1830 48-Port PoE+ Layer 2 Switch

The Aruba JL815A is a smart-managed, enterprise-class Gigabit Layer 2 switch designed for small and medium businesses that need reliable, scalable, and power-efficient network infrastructure without the complexity or cost of traditional enterprise switching platforms. With 48 Gigabit Ethernet ports, 24 IEEE 802.3at PoE+ ports delivering a 370W total power budget, 4 SFP uplink ports, and a 104 Gbps non-blocking switching fabric, the Aruba JL815A gives growing organizations the network density and PoE capacity to support a full deployment of access points, IP surveillance cameras, VoIP phones, and IoT devices from a single 1U rack-mountable unit.

KEY FEATURES

The Aruba JL815A operates on a 104 Gbps switching fabric with a forwarding rate of 77.37 Mpps, delivering wire-speed performance across all 48 ports simultaneously. Latency at Gigabit speed is under 2.8 microseconds, ensuring that latency-sensitive applications including VoIP and video conferencing run without disruption even under heavy concurrent network load. The 1.5MB packet buffer absorbs traffic bursts during peak usage periods without packet loss.

PoE+ capability is a defining feature of the Aruba JL815A. Ports 1 through 24 support IEEE 802.3at Class 4 PoE+, delivering up to 30W per port with a combined power budget of 370W. This is sufficient to power 24 simultaneous PoE+ devices — including Wi-Fi 6 access points, PTZ surveillance cameras, and IP desk phones — without requiring separate power injectors or additional electrical infrastructure. Automatic power configuration and PoE scheduling allow administrators to control device power states on a time-based schedule, reducing energy consumption outside business hours.

The four SFP 1GbE uplink ports support fiber connections to the network core, enabling the Aruba JL815A to function as an access-layer switch in a multi-tier network architecture. Fiber uplinks eliminate copper distance limitations and support high-speed uplink to distribution switches, server rooms, or WAN edge devices across larger campus or warehouse environments.

Security on the Aruba JL815A is handled through a combination of hardware and software controls. A Trusted Platform Module (TPM) chip provides hardware-based cryptographic security for device integrity validation. VLAN segmentation isolates traffic between departments, guest networks, and IoT devices. Global Storm Control prevents broadcast, multicast, and unknown unicast flood attacks. Automatic Denial-of-Service (DoS) detection monitors traffic patterns and blocks malicious activity in real time without requiring manual intervention.

Management flexibility is a standout characteristic of the Aruba JL815A. Three management modes are available simultaneously: the Aruba Instant On cloud portal, the Instant On mobile app for iOS and Android, and a local web GUI accessible directly from any browser on the same network. No cloud key, controller, or additional hardware is required. The mobile app provides guided step-by-step deployment instructions, real-time alerts, bandwidth monitoring, client visibility, and remote firmware updates — all from a smartphone.

TECHNICAL SPECIFICATIONS

• Product Number: JL815A
• Series: Aruba Instant On 1830
• Switch Type: Smart-managed Layer 2 Gigabit Ethernet
• RJ-45 Ports: 48 x 10/100/1000 autosensing (IEEE 802.3ab 1000BASE-T)
• PoE Ports: 24 x IEEE 802.3at Class 4 PoE+ (Ports 1-24, up to 30W per port)
• PoE Power Budget: 370W
• SFP Ports: 4 x 1GbE SFP
• Switching Capacity: 104 Gbps
• Forwarding Rate: 77.37 Mpps
• Latency: 5.2 ms at 100 Mbps / 2.8 µs at 1 Gbps
• MAC Address Table: 16,000 entries
• Packet Buffer: 1.5 MB
• Processor: ARM Cortex-A9 at 800 MHz
• Memory: 512 MB SDRAM / 256 MB Flash
• Management: Aruba Instant On Cloud, Mobile App (iOS/Android), Local Web GUI, SNMP
• Layer 2 Features: IEEE 802.1Q VLANs, LACP (802.3ad), IGMP Snooping, Spanning Tree (802.1d/802.1w), LLDP, QoS (802.1p/DSCP), Port Mirroring, DHCP Client
• Security: TPM, DoS Protection, Global Storm Control, BPDU Filter, Loop Protection, 2FA
• Compliant Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at, 802.3az, 802.3ad, 802.1d, 802.1q, 802.1p, 802.1w, 802.1ab
• AC Input Voltage: 100-127V / 200-240V AC, 50/60 Hz
• Maximum Power Rating: 462.5W at 100-127V
• Form Factor: 1U Rack-mountable
• GTIN: 190017524412

USE CASES

Small and Medium Business Networks: The Aruba JL815A is purpose-built for SMB environments that need managed switching with PoE capacity at an accessible price point. A single JL815A can power and connect an entire floor’s worth of Wi-Fi access points, IP cameras, and VoIP handsets without any additional power infrastructure. The Instant On mobile app eliminates the need for dedicated IT staff to deploy and manage the switch — business owners and office managers can configure VLANs and monitor clients directly from their phones.

Retail and Hospitality: Retail stores, hotels, and restaurants use the Aruba JL815A to segment guest Wi-Fi from point-of-sale and back-office networks using VLANs, while powering access points and security cameras from the same switch. PoE scheduling allows cameras and non-essential devices to be powered down during off-hours, reducing electricity costs in high-uptime environments.

Education: Schools and universities deploy the Aruba JL815A in classrooms and administrative areas to provide high-density wired and wireless connectivity. The switch’s cloud management capability allows campus IT teams to configure and monitor multiple switches across different buildings from a single dashboard, without visiting each location physically.

Surveillance and Access Control: The Aruba JL815A’s 370W PoE budget and 24 PoE+ ports make it a practical backbone for IP surveillance deployments. Each port delivers up to 30W, supporting high-resolution PTZ cameras and PoE-powered door access controllers. DoS protection and VLAN isolation ensure that the security network remains separated from general business traffic.

WHY BUY FROM JAZZ CYBER SHIELD

Jazz Cyber Shield ( jazzcybershield.com ) is a trusted IT hardware reseller supplying businesses, institutions, and government buyers across the USA, UK, Canada, and Australia. Every Aruba JL815A sold through Jazz Cyber Shield is sourced through authorized channels, ensuring genuine product, valid manufacturer warranty, and full Aruba support eligibility.

Our networking specialists provide pre-sale consultation to help you size PoE budgets, plan VLAN architecture, and select the right Aruba Instant On model for your specific deployment. We carry the full Aruba Instant On 1830 switch series alongside a broad range of complementary Aruba access points and network accessories.

For multi-unit deployments across multiple sites, Jazz Cyber Shield offers volume pricing and dedicated account management. Browse our full range of Aruba network switches ( jazzcybershield.com/switches/aruba ) to compare the JL815A against other Aruba Instant On and CX series models.

For the official Aruba JL815A product page and datasheet, visit the manufacturer’s site ( https://www.arubanetworks.com/products/switches/instant-on/1830-series/ ).

FAQS

Q: How many devices can the Aruba JL815A power via PoE+ simultaneously?

A: The Aruba JL815A provides 370W of total PoE power across 24 IEEE 802.3at Class 4 ports, each delivering up to 30W. In practice, the number of simultaneously powered devices depends on each device’s power draw — 24 access points drawing 15W each, for example, would consume 360W of the available budget, keeping all ports active simultaneously.

Q: Does the Aruba JL815A require a cloud subscription or controller to function?

A: No. The Aruba JL815A operates fully as a plug-and-play switch without any cloud subscription, controller, or licensing fee. Cloud management via the Aruba Instant On portal and mobile app is available at no additional cost, and the switch can also be managed entirely through the local web GUI without any cloud connectivity.

Q: What Layer 2 features does the Aruba JL815A support?

A: The Aruba JL815A supports IEEE 802.1Q VLANs, LACP link aggregation (802.3ad), IGMP Snooping, Spanning Tree Protocol (802.1d and 802.1w Rapid STP), LLDP, QoS with 802.1p and DSCP classification, port mirroring, DHCP client, and dual firmware image support for safe upgrades. All features are included with no additional licensing.

Q: Is the Aruba JL815A suitable for rack installation?

A: Yes. The Aruba JL815A ships in a standard 1U rack-mountable form factor compatible with 19-inch equipment racks. Rack mounting hardware is included in the box. The switch supports Direct Power On from a power strip or timer, making it compatible with scheduled power management systems used in managed data center and wiring closet environments.
