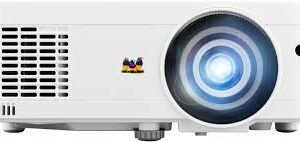

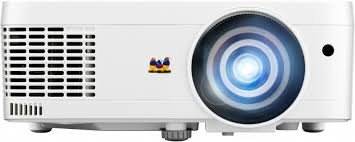

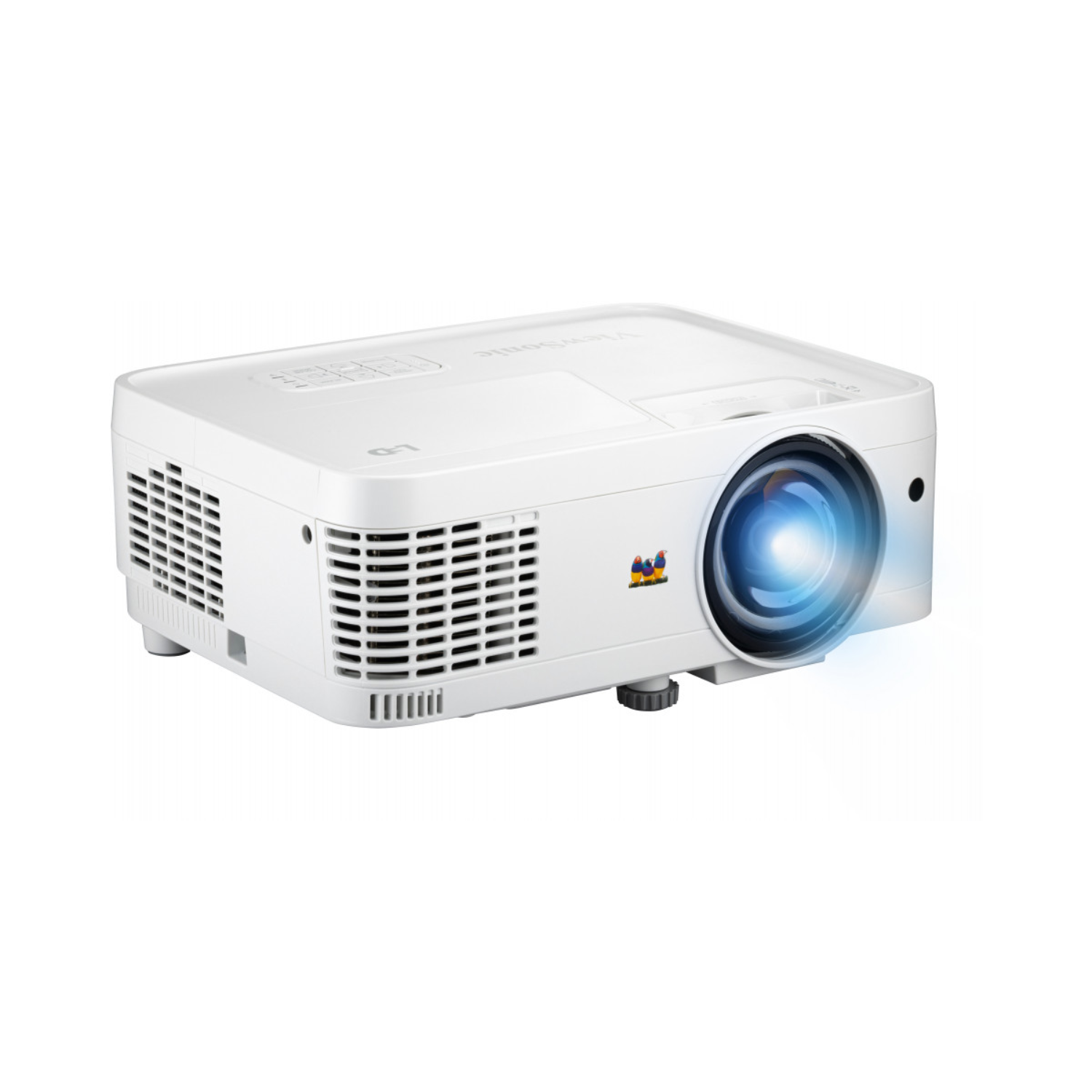

The ViewSonic LS560WH is a professional-grade short throw LED projector designed to deliver bright, high-impact visuals in education, business, and creative spaces. Equipped with advanced lamp-free LED technology, this projector ensures long-lasting performance with minimal maintenance and vivid color accuracy for presentations, meetings, or immersive applications.
Detailed Features
-
Bright LED Illumination: Projects up to 3,000 ANSI lumens, making visuals clear and vibrant even in well-lit rooms.
-
Lamp-Free LED Design: Latest LED light source delivers up to 30,000 hours of usage without lamp replacements.
-
Short Throw Lens: With a 0.49 throw ratio, you can achieve a 100″ screen from ~3.6 ft away — perfect for small spaces.
-
Flexible Image Control: Features horizontal/vertical keystone correction and 4-corner adjustment for distortion-free alignment.
-
Instant On/Off: Starts quickly like a TV and shuts off without long cooling times.
-
LAN & Network Control: Full compatibility with Crestron, AMX, Extron, PJ Link, ATEN, and ViewSonic vController.
Why Choose This Projector
-
Low Total Cost of Ownership: Lamp-free LED tech reduces maintenance and energy costs.
-
Large Image in Small Rooms: Short throw design reduces shadows and eye glare for presenters.
-
Versatile Installation: 360° orientation lets you project on walls, ceilings, or floors.
-
Professional Control: LAN management and schedule features ideal for institutional environments.
Additional Benefits
-
Eco-friendly LED light source with mercury-free design.
-
Wide color gamut for realistic visuals.
-
Reliable for 24/7 operation in demanding settings.
📊 Specifications Table
| Specification | Detail |
|---|---|
| Resolution | WXGA (1280 x 800) |
| Brightness | 3,000 ANSI Lumens (LED) |
| Throw Ratio | 0.49:1 |
| Light Source Life | Up to 30,000 hours |
| Contrast Ratio | 3,000,000:1 |
| Keystone Correction | ±40° H / ±40° V |
| Digital Zoom | 0.8×–2.0× |
| Refresh Rate | Up to 120 Hz |

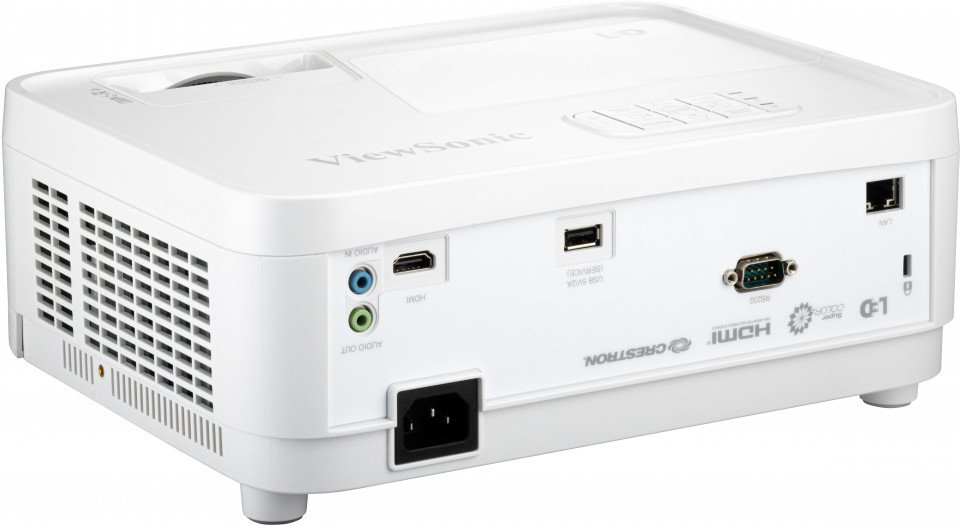

| Inputs | HDMI 1.4, USB-A, RJ-45, RS-232, Audio In/Out |
| Speaker | 2 W Internal |
| Weight | ~6.2 lbs (2.85 kg) |
| Screen Size | 30–300″ |
| Warranty | 3 yr parts & labor + 1 yr LED source¹ |
FAQ
Does Jazz Cyber Shield ship to Canada and Europe?
Yes. Jazz Cyber Shield ships worldwide including USA, Canada, UK, Germany, France, and across Europe with full manufacturer warranty and 30-day return policy included. We prioritize secure packaging and reliable international logistics to ensure your ViewSonic projector arrives safely and on time, no matter where your office or school is located.
What is the main advantage of a short-throw projector like the LS560WH?
The primary advantage is the ability to project a large 100-inch image from just a few feet away. This setup prevents the presenter from casting shadows on the screen and eliminates the glare that usually hits the presenter’s eyes, making it far more comfortable for interactive teaching and presentations.
Is this projector suitable for rooms with the lights on?
Yes, the 3,000 ANSI lumens of brightness are specifically engineered to produce a clear and vivid image even in environments with strong ambient light. While complete darkness provides the best contrast, the LS560WH ensures that students or colleagues can still take notes while the projector is in use.
How does the LED technology reduce the total cost of ownership?
Since the projector uses a lamp-free LED engine, you never have to spend money on expensive replacement bulbs, which can cost hundreds of dollars over time. Additionally, the LED system consumes significantly less power than traditional projectors, leading to lower monthly electricity bills.
Can I manage multiple LS560WH units remotely?
Absolutely, as this projector features comprehensive LAN control and is compatible with major management systems such as Crestron, AMX, and ViewSonic’s vController. This allows IT administrators to monitor the status of every projector in a building, schedule power times, and update firmware from a single centralized location.



























Michael tenis –
I was also impressed by how quiet it runs compared to other projectors I’ve used. Great value for the price!
Andrew –
Purchased the LS560WH through Jazz Cyber Shield and I’m very satisfied. The LED performance is stable, colors are vibrant, and it runs quietly during presentations. Customer support was responsive and helpful throughout. Great product backed by a reliable website!
Daniel R –
I recently purchased the ViewSonic LS560WH Short Throw LED Projector for my small office setup, and the image quality is outstanding. Even in a limited space, it delivers a bright and sharp display without needing much distance from the wall. The LED light source is a big plus, and I love how low-maintenance it is. Highly recommended for classrooms and meeting rooms!
