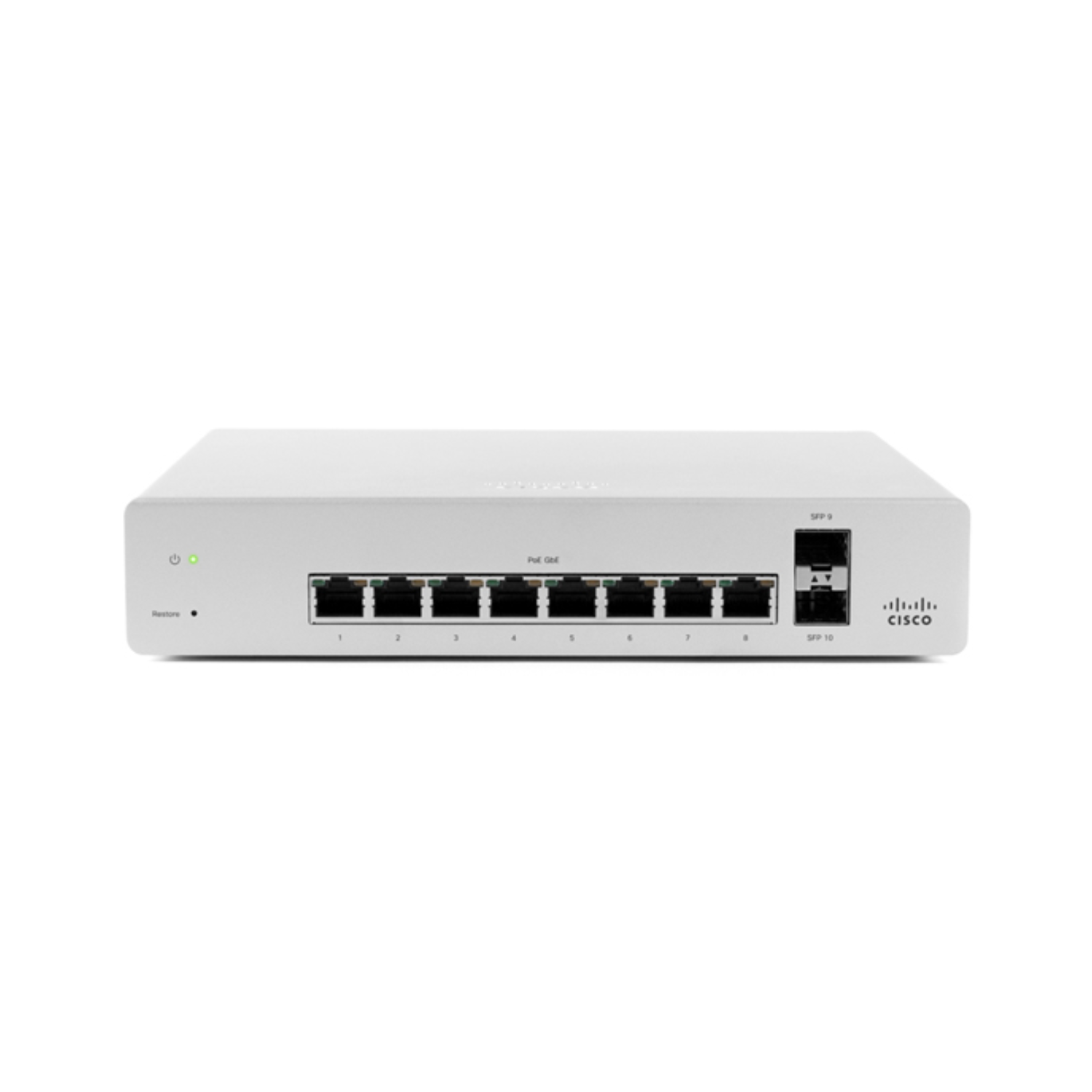

Cisco Meraki MS220-8P 8-Port Gigabit PoE+ Cloud-Managed Switch – Enterprise-Grade Networking for Small Business & IoT Deployments

Overview

The Cisco Meraki MS220-8P is a fully cloud-managed Layer 2 Gigabit Ethernet switch that combines high-performance switching, Power over Ethernet (PoE+), and centralized cloud management in a compact 1RU form factor. Designed for small to medium businesses, branch offices, retail environments, and IoT deployments, this switch delivers enterprise-class features with zero-touch provisioning and remote management capabilities.

Technical Specifications & Key Features

Hardware Specifications

• 8 x Gigabit Ethernet Ports: All ports support 10/100/1000 Mbps speeds
• PoE+ Capabilities:
  • 8 x IEEE 802.3af/at PoE+ ports (15.4W per port)
  • Total PoE Budget: 124W (supports multiple PoE devices simultaneously)
• Compact Form Factor: 1RU rack-mountable (19″ standard) or desktop placement
• Silent Operation: Fanless design for noise-sensitive environments
• Power Supply: Internal, 100-240V AC (auto-sensing)

Cloud Management & Software Features

• Meraki Dashboard:
  • Zero-touch deployment – Unbox, plug in, and auto-provision
  • Remote configuration & monitoring from any web browser
  • Real-time alerts & analytics for network health
• Layer 2 Switching Features:
  • VLAN support (802.1Q) for network segmentation
  • QoS (802.1p/DSCP) for traffic prioritization
  • IGMP snooping for multicast optimization
  • STP/RSTP for loop prevention
• Security:
  • Port security (MAC filtering)
  • DHCP snooping
  • Access control lists (ACLs)
• Scalability:
  • Stackable with other Meraki switches
  • Auto VPN for secure site-to-site connectivity (when paired with Meraki MX)

Performance & Reliability

• Non-blocking switching capacity: 16 Gbps
• Forwarding rate: 11.9 Mpps
• Jumbo frame support: Up to 9216 bytes
• Energy Efficient Ethernet (EEE): Reduces power consumption during low traffic

Use Cases & Applications

✔ Powering PoE Devices: Ideal for IP phones (VoIP), wireless access points (Wi-Fi 6), and IP cameras (surveillance systems)
✔ Small Office Networking: Perfect for businesses with 10-50 users needing reliable, managed switching
✔ Retail & Hospitality: Deploy in restaurants, shops, or hotels for POS systems and guest Wi-Fi
✔ IoT & Smart Buildings: Connect and power digital signage, sensors, and building automation systems
✔ Remote Sites: Cloud management allows IT teams to configure branch offices without on-site visits

Why Choose the Meraki MS220-8P?

• Simplified Management: No CLI needed – configure everything via the Meraki cloud dashboard
• PoE+ Ready: Power devices without extra electrical wiring
• Enterprise Features at SMB Price: Get VLANs, QoS, and security without complexity
• Scalable: Grow your network by adding more Meraki switches with unified management
• Reliable Support: Backed by Cisco’s enterprise-grade hardware warranty & Meraki support
