Sale!
Name:
CBS350-24P-4X
Model:

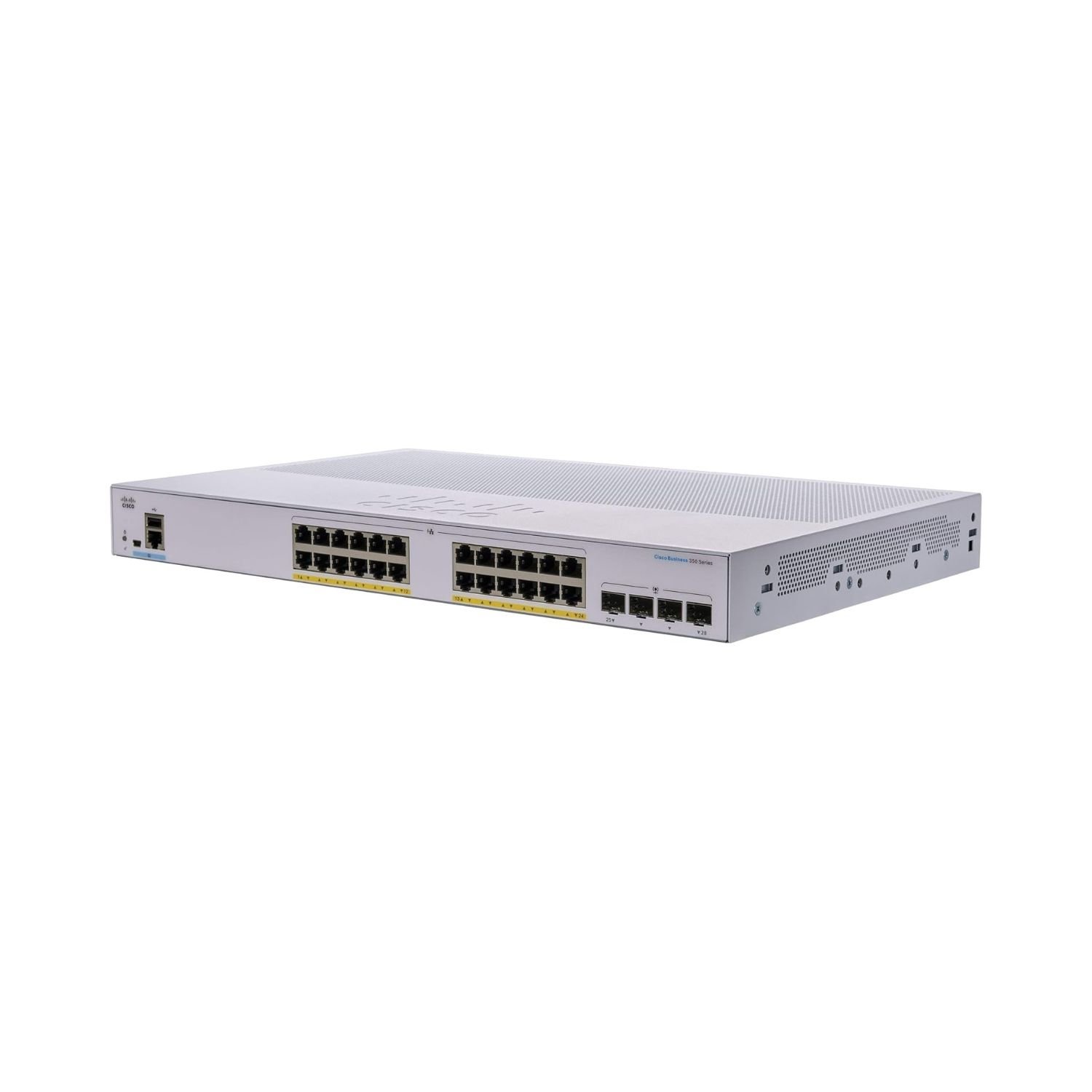

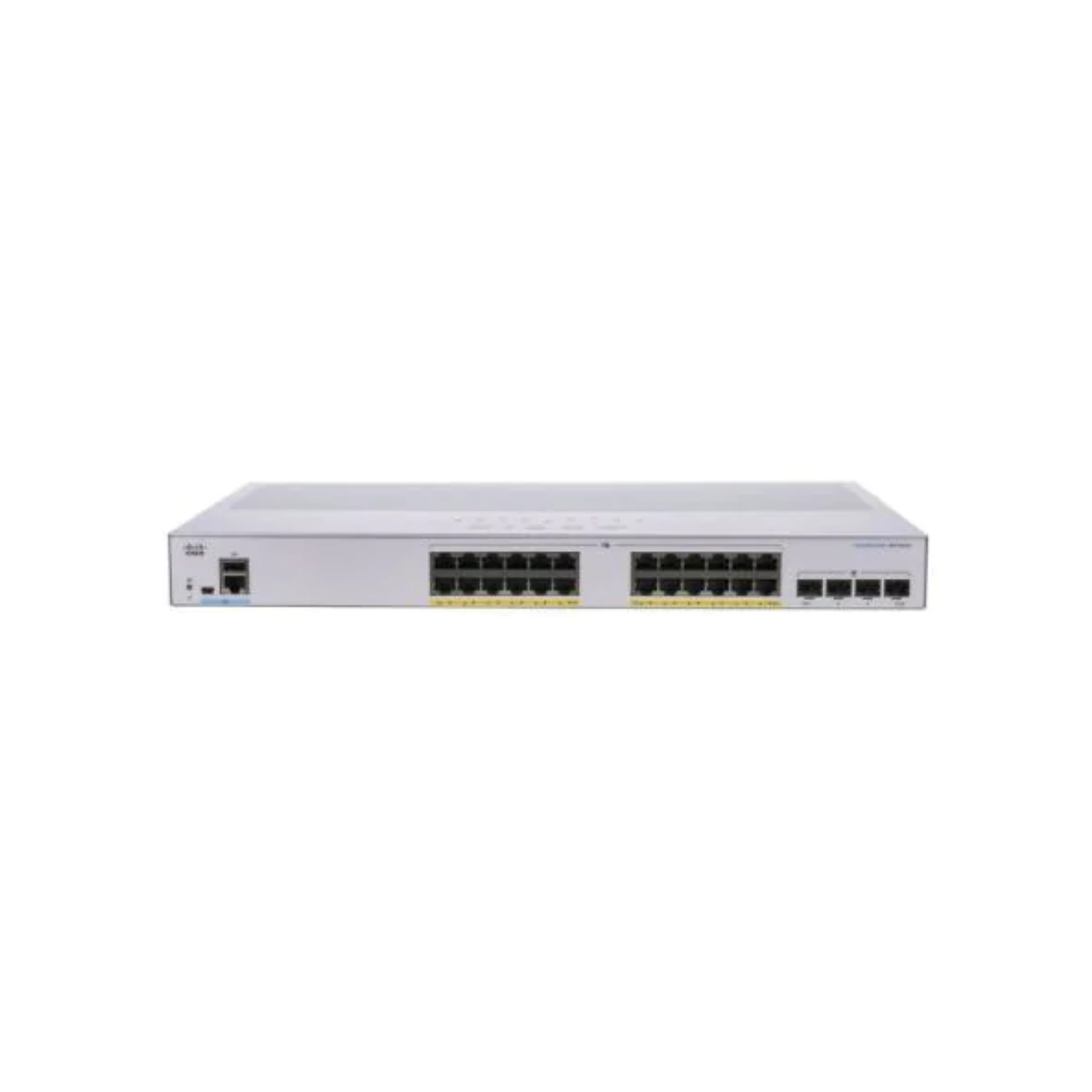

CBS350-24P-4X - Cisco Business 350 Series Managed Switches
Detail:
Cisco Business 350 switch, 24 10/100/1000 PoE+ ports with 195W power budget, 4 10 Gigabit SFP+
Condition:
New
Price:
Original price was: $1,325.00.$1,099.00Current price is: $1,099.00.
Warranty:
Quantity:
Shipping:
Payment:
24/7 Online Service
+1 (512) 885-5387
info@jazzcybershield.com
30 Days Return & Refund
You may return a product within 30 days of the delivery date and the proccessing time is 15 days.
Best Price Guarantee
Found it cheaper? Let us know! We're committed to offering the lowest prices around.
Product Detail
- 24 Gigabit Ethernet Ports: Provides ample connectivity for desktops, servers, and other network devices.
- 4 Gigabit Ethernet Uplinks: Offers flexible high-speed connections for network aggregation and expansion.
- Layer 2 and Layer 3 Capabilities: Supports a wide range of networking protocols, including VLANs, routing, and quality of service (QoS), allowing for efficient network segmentation and traffic management.
- PoE+ Support: Powers compatible devices such as IP phones, wireless access points, and security cameras directly over the network, eliminating the need for separate power outlets.
- Intuitive Web Interface: Provides a user-friendly web-based interface for easy configuration and management of the switch, even for users with limited networking experience.
- Advanced Security Features: Includes built-in security features such as port security, MAC address filtering, and DHCP snooping to protect your network from unauthorized access and attacks.
- Energy Efficiency: Designed with energy-saving features to reduce power consumption and lower operating costs.
- Stacking Capabilities: Allows multiple switches to be interconnected, providing a scalable and modular solution for growing networks.
- Fanless Design: Operates silently, making it ideal for noise-sensitive environments.
- Limited Lifetime Warranty: Provides peace of mind with a limited lifetime warranty covering hardware and software defects.
The Cisco CBS350-24P-4X is a powerful and versatile managed switch designed to meet the needs of small and medium-sized businesses. With its advanced features and user-friendly interface, this switch provides a reliable and scalable solution for connecting network devices and improving network performance.
CBS350-24P-4X Specification
CBS350-24P-4X Specifications |
|
| Capacity in Millions of Packets per Second (mpps) (64-byte packets) | 95.23 |
| Switching Capacity in Gigabits per Second (Gbps) | 128.0 |
| Total System Ports | 24 x Gigabit Ethernet + 4 x 10G |
| RJ-45 Ports | 24 x Gigabit Ethernet |
| Combo Ports (RJ45 + Small form-factor pluggable [SFP]) | 4 x SFP+ |
| Packet Buffer | 1.5 MB |
| Unit dimensions (W x D x H) | 445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in) |
| Layer 3 | |
| IPv4 routing | Wirespeed routing of IPv4 packets
Up to 990 static routes and up to 128 IP interfaces |
| IPv6 routing | Wirespeed routing of IPv6 packets |
| Layer 3 Interface | Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface |
| Classless Interdomain Routing (CIDR) | Support for classless interdomain routing |
| RIP v2 | Support for Routing Information Protocol version 2 for dynamic routing |
| Policy-Based Routing (PBR) | Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL) |
| DHCP Server | Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes
Support for DHCP options |
| DHCP relay at Layer 3 | Relay of DHCP traffic across IP domains |
| User Datagram Protocol (UDP) relay | Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets |
| Quality of Service | |
| Priority levels | 8 hardware queues |
| Scheduling | Strict priority and Weighted Round-Robin (WRR) |
| Rate limiting | Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based; 2R3C policing |
| Congestion avoidance | A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization |
| iSCSI traffic optimization | A mechanism for giving priority to iSCSI traffic over other types of traffic |
| Green (power efficiency) | |
| Energy Detect | Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link up |
| Cable length detection | Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables. |
| EEE Compliant (802.3az) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
| Disable port LEDs | LEDs can be manually turned off to save on energy |
| Time-based port operation | Link up or down based on user-defined schedule (when the port is administratively up) |
| Time-based PoE | PoE power can be on or off based on user-defined schedule to save energy |
| General | |
| Jumbo frames | Frame sizes up to 9K bytes. The default MTU is 2K bytes |
| MAC table | 16K addresses |
| Hardware | |
| USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
| Buttons | Reset button |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
| LEDs | System, Link/Act, PoE, Speed |
| Flash | 256 MB |
| CPU | 800 MHz ARM |
| DRAM | 512 MB |
| Environmental | |
| Storage temperature | -13° to 158°F (-25° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Warranty | Limited lifetime with next business day advance replacement (where available) |
| Package Contents |
|
| Minimum Requirements |
|
