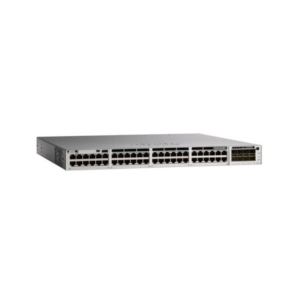

C9200L-48T-4X-E – Cisco Switch Catalyst 9200

The Cisco Catalyst 9200 C9200L-48T-4X-E is a high-performance, secure, and reliable 48-port Gigabit Ethernet switch designed to meet the demands of modern enterprise and branch office networks. This versatile device offers a comprehensive suite of features, making it an ideal choice for businesses seeking to enhance their network infrastructure.

The C9200L-48T-4X-E is designed to deliver exceptional performance, reliability, and security. Its advanced features and compatibility with Cisco’s broader networking ecosystem make it a valuable asset for businesses of all sizes. Whether you’re looking to improve network efficiency, enhance security, or support the growth of your organization, the C9200L-48T-4X-E is a reliable and versatile choice.

Key Specifications:

• Ports:

  • 48 x 10/100/1000 Mbps (Gigabit Ethernet) data ports.

  • 4 x 10 Gigabit SFP+ uplink ports, supporting fiber optics for high-speed connectivity.

• Switching Capacity:

  • Total Switching Capacity: 176 Gbps.

  • Forwarding Rate: 261.9 Mpps (Million packets per second), ensuring fast data forwarding with minimal delay.

• Stacking:

  • StackWise-80 Technology: Supports stackable configuration with 80 Gbps stack bandwidth, allowing the switches to be combined as one unit for improved performance and resiliency.

• Memory:

  • DRAM: 2 GB for fast data access.

  • Flash: 4 GB storage for system files and software images.

• Layer 3 Features:

  • Routing Protocols: Supports dynamic routing protocols like OSPF (Open Shortest Path First), RIP (Routing Information Protocol), EIGRP (Enhanced Interior Gateway Routing Protocol), and VRRP (Virtual Router Redundancy Protocol).

  • IPv4 and IPv6 Routing: Supports both IPv4 and IPv6 routing for next-gen networking environments.

• Security:

  • 802.1X Authentication: Ensures device authentication to prevent unauthorized access.

  • MACsec Encryption: Provides hardware-based encryption to secure the data in transit.

  • Port Security: Prevents unauthorized devices from connecting to the network.

  • Policy-Based Routing: Enables dynamic control over network traffic based on policies.

• Management and Automation:

• Cisco DNA Center: Integration with Cisco’s Digital Network Architecture for centralized management and network automation.

• • SNMP, CLI, RESTCONF, and NETCONF: Offers a variety of management options for seamless network configuration and monitoring.

  • Cisco Smart Licensing: Simplifies license management and enables flexible software licensing.

• Power over Ethernet (PoE):

  • Optional PoE+ support for delivering power to connected devices such as IP phones, cameras, or wireless access points.

• Redundancy and Reliability:

  • Redundant Power Supply Support: Enhances uptime by providing backup power if the main supply fails.

  • Surge Protection: Safeguards the switch from power surges, reducing the risk of damage and ensuring operational continuity.

• Physical Dimensions:

  • Dimensions: 1.73 inches (H) x 17.5 inches (W) x 11.3 inches (D).

  • Weight: Approximately 5 kg (11 lbs), making it easy to install and maintain.

• Environmental:

  • Operating Temperature: 0°C to 45°C (32°F to 113°F).

  • Storage Temperature: -40°C to 70°C (-40°F to 158°F).

  • Humidity: 10% to 85% non-condensing.

Key Features:

• Simplified Operations: The C9200L series is designed to simplify network management with its easy-to-use interface and automated configuration tools.

• Future-Ready Design: With support for both IPv4 and IPv6, this switch is future-proof and ready for the latest network protocols.

• Energy-Efficient: The switch is designed with power-saving features, including Energy Efficient Ethernet (EEE) to help reduce energy consumption without compromising performance.

• Enterprise-Class Security: Comprehensive security features protect against unauthorized access, while the switch supports secure network segmentation and encrypted data transmission.

• Seamless Scalability: The Cisco Catalyst 9200L is highly scalable, allowing businesses to easily expand their network by adding more switches or devices.

Applications:

• Small to Medium Enterprises (SMEs): Ideal for businesses that need reliable, high-performance networking without the complexity of larger enterprise solutions.

• Campus Networks: Perfect for schools, universities, or corporate campuses, where a high density of devices is connected.

• Branch Offices: Suitable for remote or branch office deployments, ensuring secure and seamless communication with the central office.

This switch is perfect for organizations that require a reliable, secure, and scalable network solution. The Cisco Catalyst 9200L offers robust Layer 3 capabilities, high availability, and easy manageability, making it an excellent choice for businesses looking to streamline their IT infrastructure.
