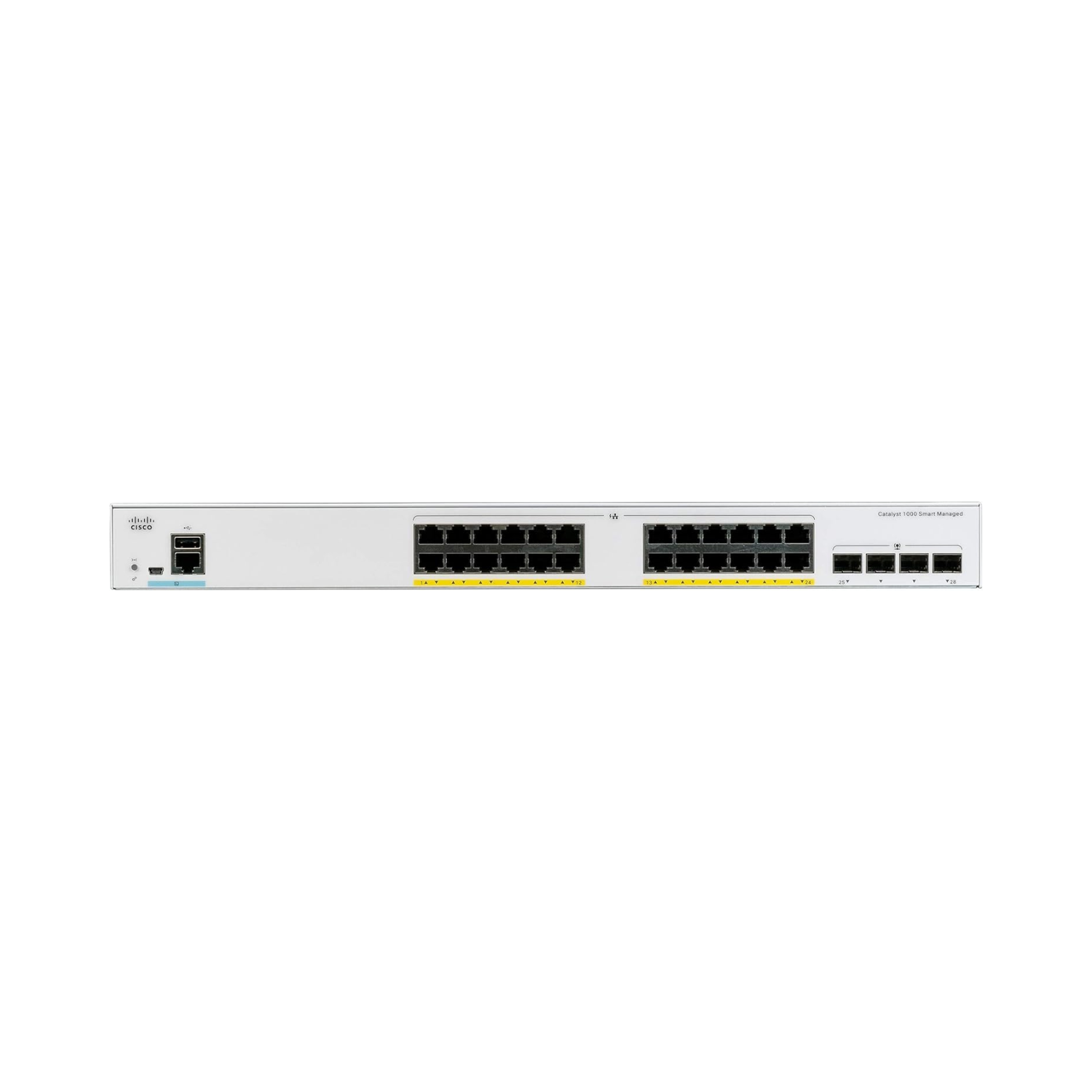

The Cisco Catalyst C1000-24T-4G-L is a reliable, high-performance managed network switch built for small to mid-sized businesses that need secure and scalable network infrastructure. Part of the Cisco Catalyst 1000 Series, it offers 24 Gigabit Ethernet ports and 4 dedicated 1G SFP uplink ports, making it ideal for high-speed data transfer and seamless network expansion.
At Jazz Cyber Shield, this switch comes 100% new, with a clean serial number, and is available at an affordable price—perfect for growing business environments.
🔧 Key Features & Benefits:
✅ 24 Gigabit Ethernet Ports
This model provides 24 high-speed Gigabit ports, ensuring fast and reliable connectivity for desktops, printers, IP phones, and other devices. It’s built for business-grade networking where performance and stability are essential.
✅ 4 x 1G SFP Uplink Ports
Includes 4 dedicated SFP uplinks to connect to fiber backbone or aggregate switches. These 1G SFP ports allow for scalable bandwidth and seamless network expansion without bottlenecks.
✅ Fanless, Silent Operation
Thanks to its fanless design, this switch operates silently, making it ideal for open workspaces, retail environments, or quiet office setups where noise reduction matters.
✅ Layer 2 Managed Switching
The C1000-24T-4G-L supports advanced Layer 2 features such as VLANs, STP (Spanning Tree Protocol), and port security, giving you better control, enhanced security, and network segmentation for better performance.
✅ Energy-Efficient Ethernet (EEE)
The switch complies with IEEE 802.3az standards, reducing power consumption during low data activity—making it an energy-efficient solution for modern offices.
✅ Enhanced Limited Lifetime Warranty
Comes with Cisco’s Enhanced Limited Lifetime Warranty, offering peace of mind and long-term protection for your IT investments.
✅ Easy Deployment & Web GUI Management
With a user-friendly web interface and support for Cisco Smart Network Application, setup and management are streamlined even for users with minimal IT experience.
C1000-24T-4G-L Specification
C1000-24T-4G-L Specification | |
Gigabit Ethernet ports | 24 |
Uplink interfaces | 4 SFP |
PoE+power budget | \ |
Fanless | Y |
Dimensions (WxDxH in inches) | 17.5 x 9.45 x 1.73 |
Console ports | |
RJ-45 Ethernet | 1 |
USB mini-B | 1 |
USB-A port for storage and Bluetooth console | 1 |
Memory and processor | |
CPU | ARM v7 800 MHz |
DRAM | 512 MB |
Flash memory | 256 MB |
Performance | |
Forwarding bandwidth | 28 Gbps |
Switching bandwidth | 56 Gbps |
Forwarding rate(64—byte L3 packets) | 41.67 Mpps |
Unicast MAC addresses | 16000 |
IPv4 unicast direct routes | 542 |
IPv4 unicast indirect routes | 256 |
IPv6 unicast direct routes | 414 |
IPv6 unicast indirect routes | 128 |
IPv4 static routes | 16 |
IPv6 static routes | 16 |
IPv4 multicast routes and IGMP groups | 1024 |
IPv6 multicast groups | 1024 |
IPv4/MAC security ACEs | 600 |
IPv6 security ACEs | 600 |
Maximum active VLANs | 256 |
VLAN IDs available | 4094 |
Maximum STP instances | 64 |
Maximum SPAN sessions | 4 |
MTU-L3 packet | 9198 bytes |
Jumbo Ethernet frame | 10,240 bytes |
Dying Gasp | Yes |
MTBF in hours (data) | 2,026,793 |
MTBF in hours (PoE) | 698,220 |
MTBF in hours (Full PoE) | 698,220 |
Environmental | |
Operating temperature Seal level | -5 to 50 deg C* |
Up to 5,000ft (1500 m) | -5 to 45 deg C |
Upto 10,000 (3000 m) | -5 to 40 deg C |
Operating altitude | 10,000 ft (3,000m) |
Operating relative humidity | 5% to 90% at 40C |
Storage temperature | -13 to 158F (-25 to 70C) |
Storage altitude | 15,000 ft (4500m) |
Storage relative humidit | 5% to 95% at 65C |
*Note: 50C operation is supported for short term operation only; GLC-BX-D/U and CWDM optics cannot support 50C operation; Minimum ambient temperature for cold start is at 0C (32F) | |
Safety and compliance | |
Safety
| UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011 |
EMC: Emissions
| 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
EMC: Immunity | EN55024 (including EN 61000-4-5), EN300386, KN35 |
Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
Telco | Common Language Equipment Identifier (CLEI) code |
U.S. government certifications | TBD |
Connectors and interfaces | |
Ethernet interfaces
| * 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling * 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling * 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling * 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
Indicator LEDs
| * Per-port status: link integrity, disabled, activity * System status: system |
Console cables
| * CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 * CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors |
Power
| * Use the supplied AC power cord to connect the AC power connector to an AC power outlet * Models have external power supply |
