Product Overview

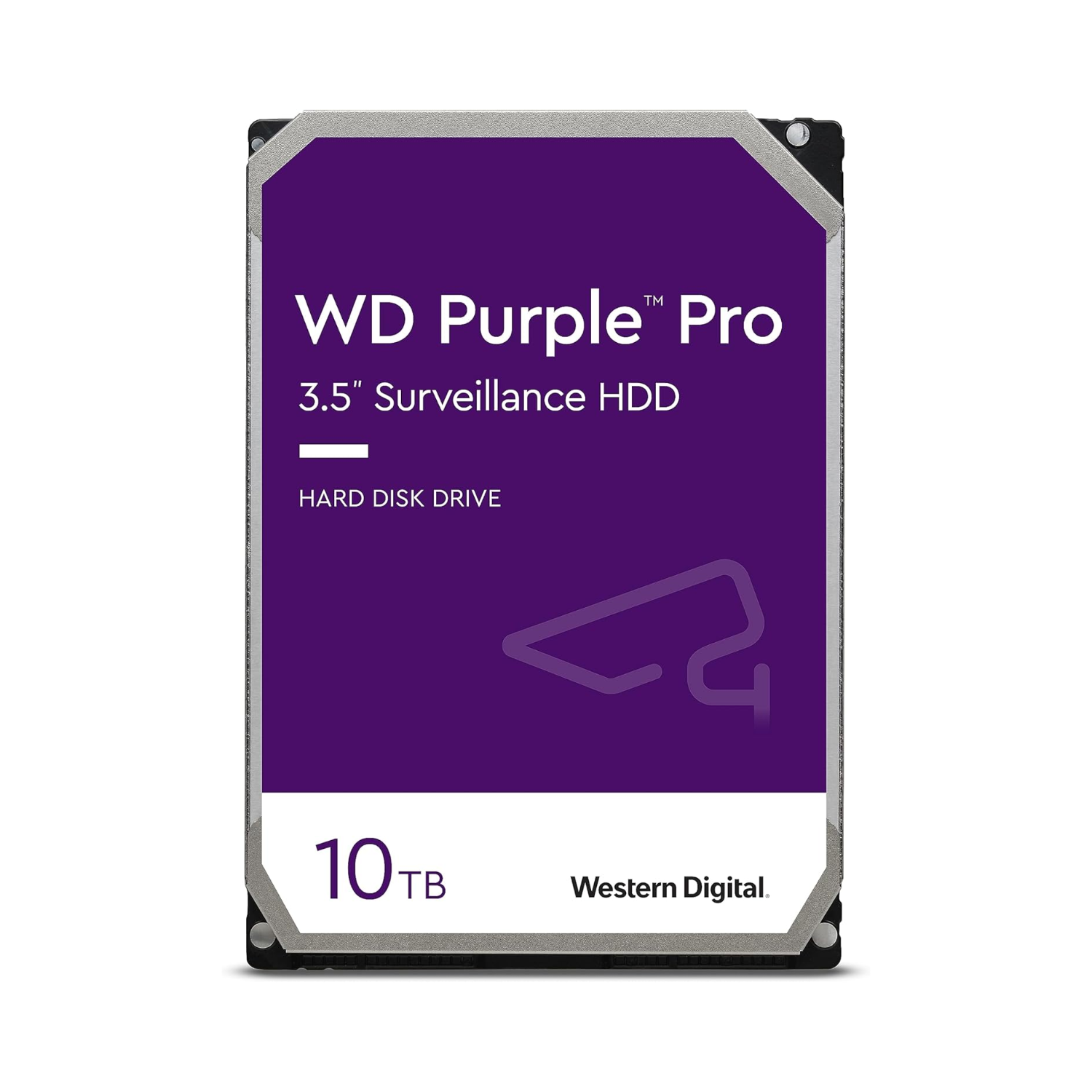

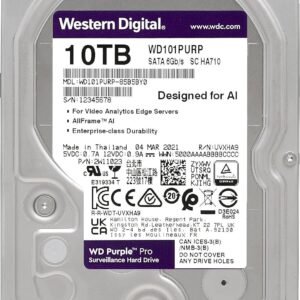

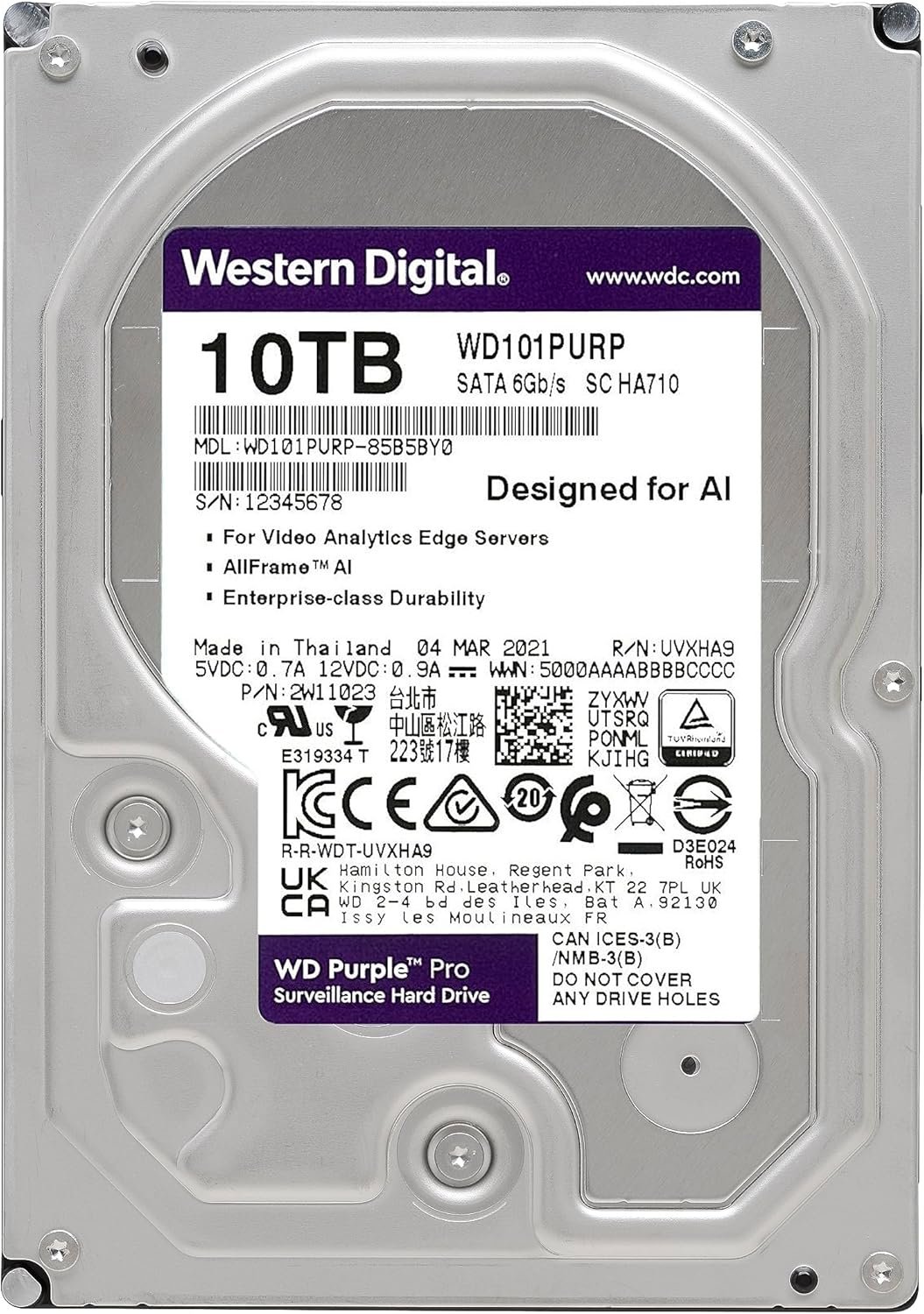

The Western Digital 10TB WD Purple Pro Surveillance Internal Hard Drive (WD101PURP) represents the premium evolution of security-focused storage. Specifically, this Pro-tier drive targets high-end, AI-enabled recorders and video analytics servers that require more than just basic video logging. It provides a massive 10TB capacity in a 3.5-inch form factor, utilizing the SATA 6 Gb/s interface to ensure a steady stream of high-definition data. Designed for 24/7 environments, the WD Purple Pro bridges the gap between standard surveillance and enterprise-level reliability, making it the top choice for commercial facilities, smart cities, and large-scale industrial monitoring.

Product Features in Full Detail

Furthermore, the drive features AllFrame AI technology, which dramatically enhances the system’s ability to handle deep learning analytics and complex metadata. This specialized firmware allows the drive to support up to 64 high-definition cameras while simultaneously managing an additional 32 AI streams for real-time facial recognition or object detection. This dual-purpose capability ensures that the drive records high-quality footage without dropping frames, even when the system is busy processing intensive analytical tasks. The high-capacity 256MB cache further stabilizes these data streams by providing an ample buffer for incoming video information.

Additionally, the WD101PURP boasts an enterprise-class workload rating of up to 550TB per year, which is significantly higher than the standard WD Purple models. This immense durability allows the drive to withstand the non-stop write and read cycles inherent in advanced video management systems that perform frequent data analysis and retrieval. The 7200 RPM performance class ensures faster access times and higher sustained transfer speeds, reaching up to 265 MB/s. This speed is critical for modern NVRs that must pull archived footage for AI processing without interrupting the live recording of incoming camera feeds.

Moreover, Western Digital incorporates HelioSeal technology into this 10TB model, using helium to reduce internal turbulence and friction. Consequently, the drive runs cooler and uses less power than traditional air-filled units, which is a vital advantage in multi-drive racks where heat buildup can lead to hardware failure. The drive also includes advanced vibration protection through built-in sensors that detect and compensate for rotational vibrations. This ensures that the drive maintains peak performance even when housed in large enclosures with 16 or more drive bays, protecting your data from the mechanical stress of a high-density server environment.

Why Choose This Product

Specifically, you should choose the WD Purple Pro if you are deploying an AI-driven security system that requires high-performance data handling. Standard surveillance drives often struggle when asked to record video and run analytics at the same time, but the Pro series is built specifically for this hybrid workload. You gain a level of mechanical precision and firmware intelligence that ensures your security system captures every critical moment with forensic clarity.

Likewise, the peace of mind provided by a 2.5 million hour Mean Time Between Failures (MTBF) rating makes this an unbeatable investment for critical infrastructure. Western Digital builds these drives with tarnish-resistant components to protect against environmental factors in harsh climates or industrial zones. By selecting the WD101PURP, you are choosing a professional-grade component backed by a 5-year limited warranty, guaranteeing that your surveillance network remains operational and secure for the long haul.

Frequently Asked Questions

1. What is the main difference between WD Purple and WD Purple Pro?

Essentially, the WD Purple Pro is built for higher-intensity environments. While the standard Purple drive is great for up to 64 cameras and 180TB/year, the Pro version adds AI stream support, a 550TB/year workload rating, a faster 7200 RPM motor, and an extended 5-year warranty.

2. Can I use the WD Purple Pro in a NAS system?

Yes, it will work in a NAS; however, its firmware is specifically tuned for “streaming” video writes. Consequently, while it is very reliable, a WD Red Pro or WD Gold might offer slightly better performance for the random read/write tasks typical of general file storage.

3. Does this 10TB drive use CMR technology?

Absolutely, the WD101PURP uses Conventional Magnetic Recording (CMR). This is critical for surveillance because it ensures consistent write speeds and prevents the performance “hiccups” that can occur with SMR drives when multiple cameras are recording.

4. Why does the drive use helium?

Actually, helium is much thinner than air, which reduces the aerodynamic drag on the spinning platters. This allows the 7200 RPM motor to run with less effort, resulting in lower power consumption and significantly reduced heat generation within your recorder.

5. Does Jazz Cyber Shield ship to Canada or Europe?

Yes. Jazz Cyber Shield ships worldwide, including the USA, Canada, UK, Germany, France, and across Europe, with a full manufacturer warranty and a 30-day return policy.
