Key Points

• • The FortiGate-60F firewall appliance has 10 Gigabit Ethernet RJ45 ports, including DMZ, WAN, and internal ports, and is appliance-only with no subscription included.

• • It seems likely that it offers high-performance security with IPS throughput up to 1.4 Gbps and supports advanced features like SD-WAN and FortiGuard services, which require separate purchase.

• • Research suggests it comes with a standard 1-year hardware warranty, with additional support available through optional subscriptions.

Product Overview

The FortiGate-60F is a compact, fanless firewall appliance designed for enterprise branch offices and mid-sized businesses, integrating firewalling, SD-WAN, and security features. It’s ideal for securing networks and optimizing WAN architecture, powered by Fortinet’s patented SD-WAN-based ASIC for high performance.

Connectivity and Performance

It features 10 Gigabit Ethernet RJ45 ports, including 2 WAN ports, 1 DMZ port, 2 FortiLink ports for access layer security, and 5 internal ports, offering flexible connectivity. Performance highlights include IPS throughput of 1.4 Gbps, NGFW throughput of 1 Gbps, and firewall throughput up to 10 Gbps for large packets, with low latency of 3.3 microseconds.

Additional Features

The appliance is part of the Fortinet Security Fabric, supporting advanced threat protection services like IPS and anti-malware, though these require separate FortiCare and FortiGuard subscriptions. It also supports high availability configurations and management via FortiManager and FortiGate Cloud.

Detailed Product Description Report

The FortiGate-60F firewall appliance, as detailed in official Fortinet documentation and verified through multiple sources, is a robust solution for network security, particularly suited for enterprise branch offices and mid-sized businesses. This report provides a comprehensive overview, ensuring all relevant specifications and features are covered, based on the latest available data as of February 28, 2025.

Product Introduction and Purpose

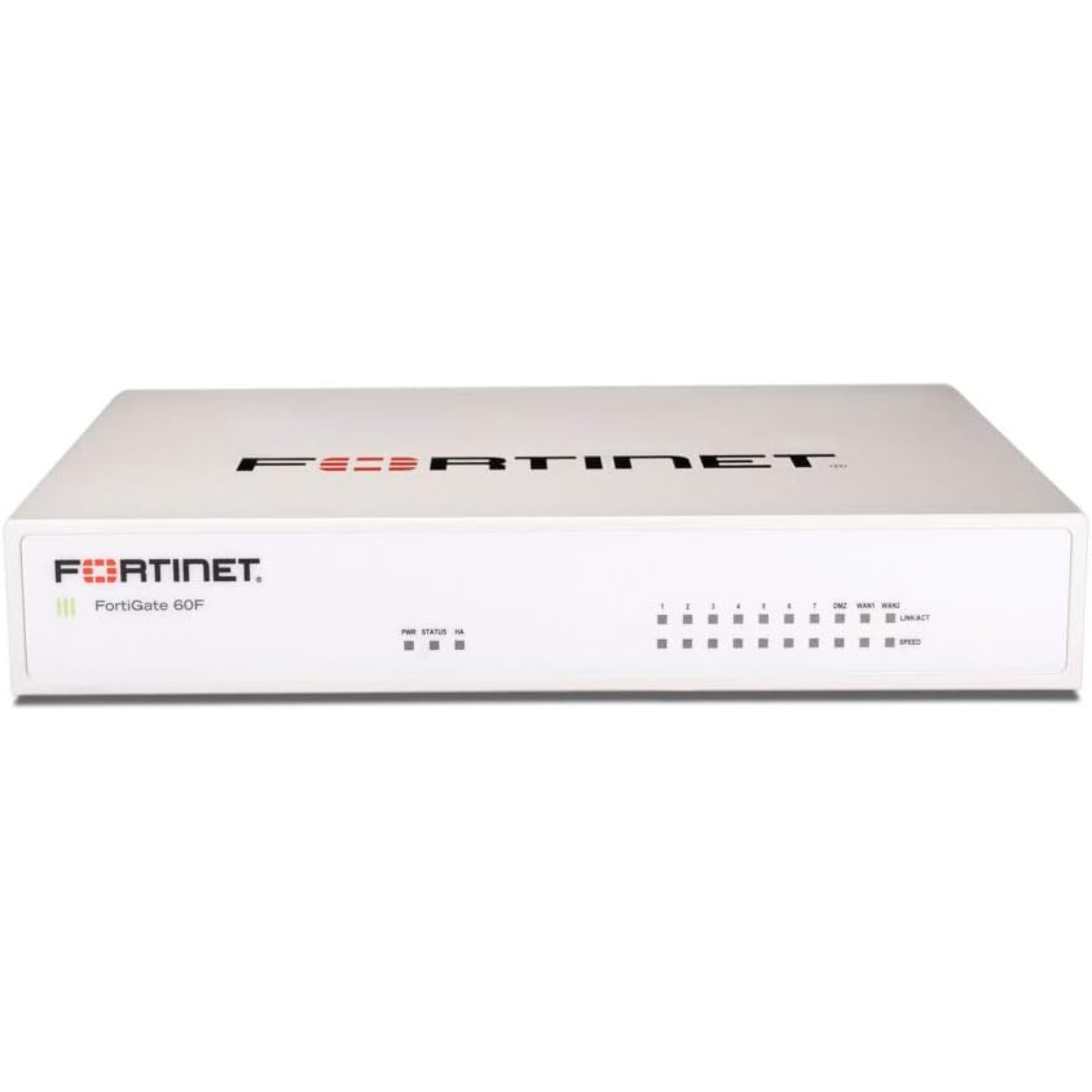

The FortiGate-60F is a compact, fanless desktop firewall appliance from Fortinet, designed to integrate advanced firewalling, SD-WAN, and security features into a single device. It is ideal for securing networks at distributed enterprise sites and transforming WAN architecture at any scale, powered by FortiOS, Fortinet’s converged networking and security operating system. This appliance is part of the Fortinet Security Fabric platform, which works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.

Key Features and Performance

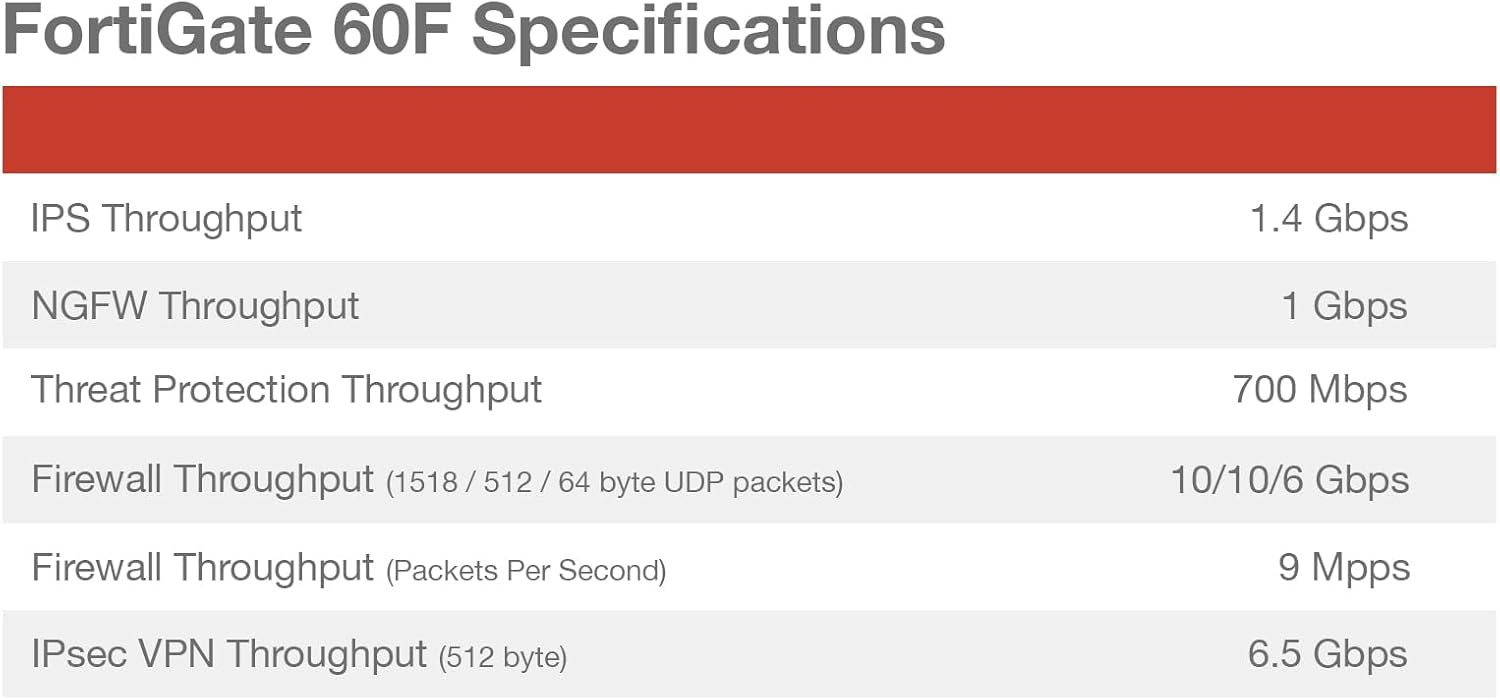

The FortiGate-60F leverages Fortinet’s patented SD-WAN-based ASIC, offering unmatched performance compared to traditional CPUs, with lower cost and reduced power consumption. Key performance metrics include:

These metrics ensure efficient network operation under heavy traffic, with low latency suitable for demanding environments.

Connectivity Options

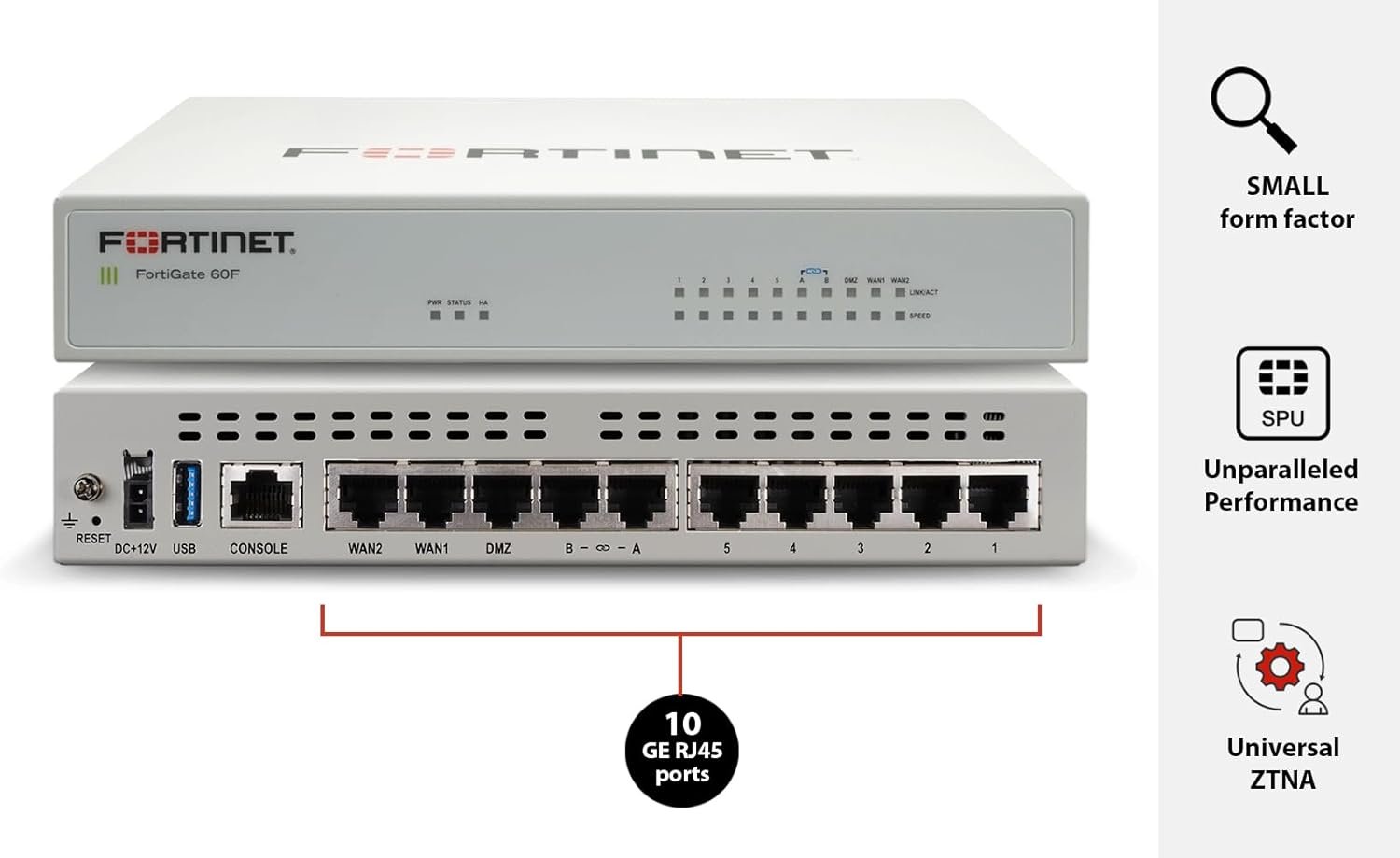

The appliance is equipped with 10 Gigabit Ethernet RJ45 ports, configured as follows:

The FortiLink ports are specifically designed for access layer security via the FortiLink protocol, enhancing connectivity with FortiSwitch devices and other Fortinet products. This configuration supports flexible network topologies, catering to diverse enterprise needs.

Physical and Environmental Specifications

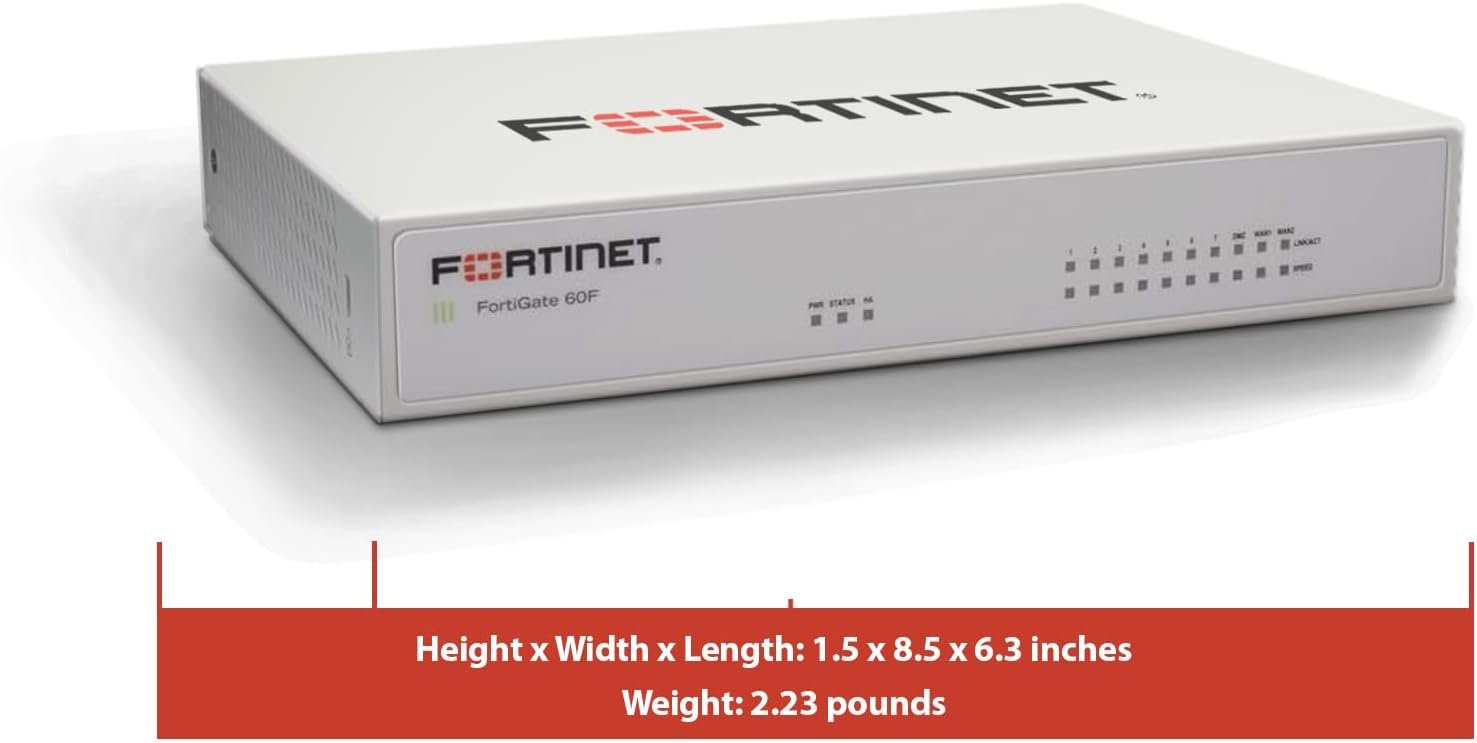

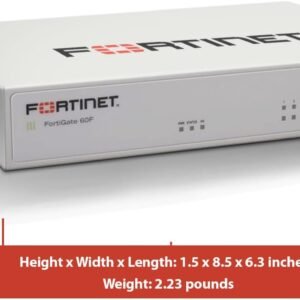

The FortiGate-60F’s compact, fanless design is tailored for office environments, with the following physical characteristics:

This design ensures silent operation and reliability, suitable for space-constrained settings.

Security and Management Features

As part of the Fortinet Security Fabric, the FortiGate-60F integrates with FortiGuard AI-Powered Security Services, offering a range of protections including:

• • Intrusion Prevention System (IPS)

• • Anti-malware protection

• • URL filtering

• • Anti-spam

• • AI-based inline malware prevention

• • Data Loss Prevention (DLP)

• • Attack Surface Security

• • OT Security

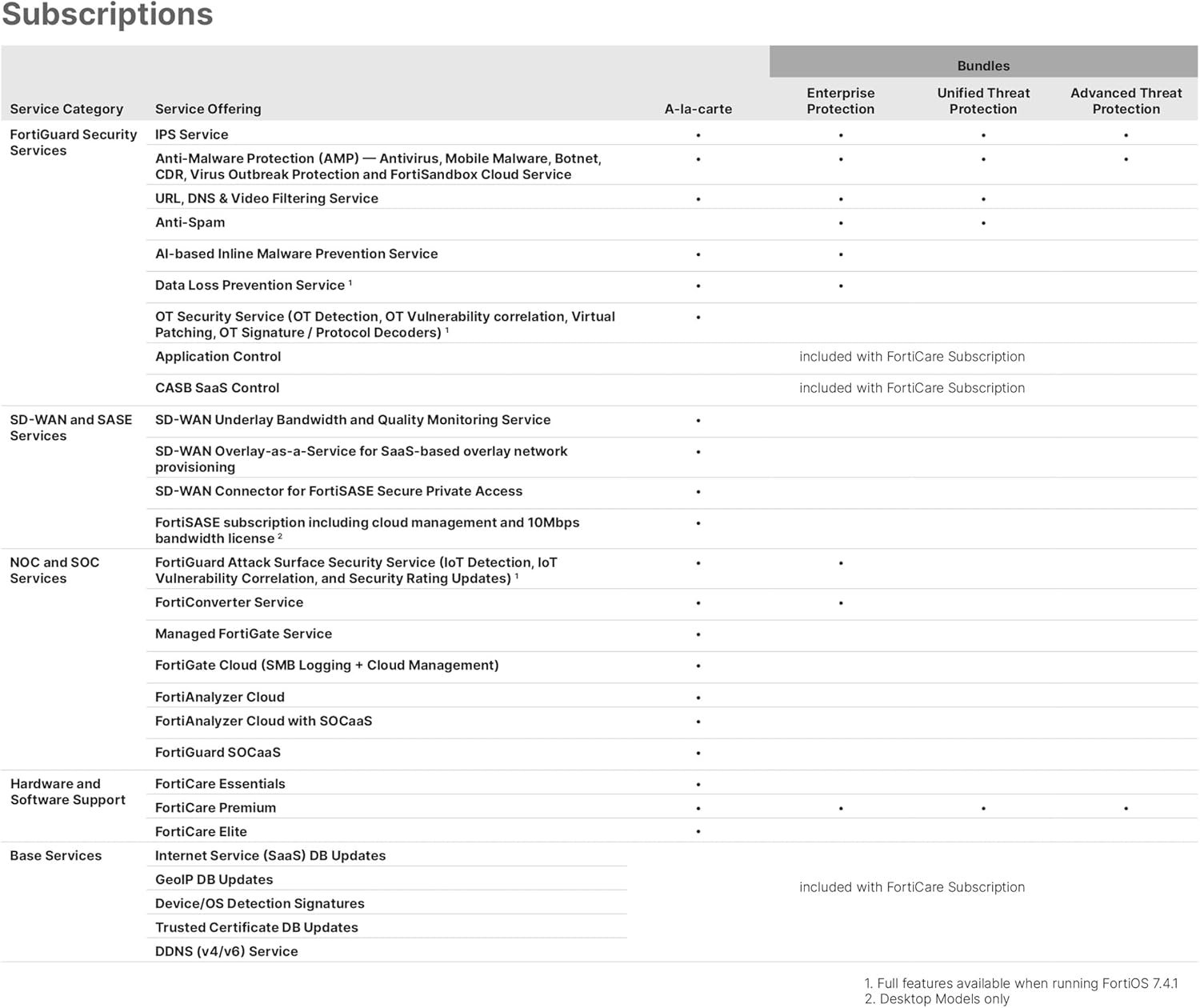

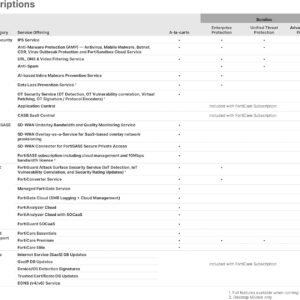

However, it is important to note that the product is appliance-only and does not include any subscription services. Customers must purchase FortiCare and FortiGuard services separately to activate these security features, available in bundles such as Enterprise Protection, Unified Threat Protection, and Advanced Threat Protection.

Management is facilitated through:

• • FortiManager for centralized management

• • FortiGate Cloud for simplified management

• • FortiConverter Service for migration from other vendors’ systems

The appliance supports high availability configurations (active-active, active-passive, clustering) and can connect with up to 24 FortiSwitches and 64 FortiAPs, enhancing its versatility for comprehensive network security.

Warranty and Support

The FortiGate-60F comes with a standard 1-year hardware warranty, ensuring coverage for manufacturing defects. Additional support and security services are available through FortiCare and FortiGuard subscriptions, which include options like 24×7 technical support, firmware updates, and advanced hardware replacement services. These subscriptions are not included and must be purchased separately, with details available at Fortinet Support Services.

Compliance and Certifications

The appliance complies with various standards, ensuring reliability and safety:

• • FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB

• • Certifications: USGv6/IPv6

These certifications validate its suitability for enterprise use, meeting regulatory and performance benchmarks.

FortiGate 60F Datasheet: FortiGate 60F Datasheet Download Click Here
