Name:
C1000-16FP-2G-L
Model:

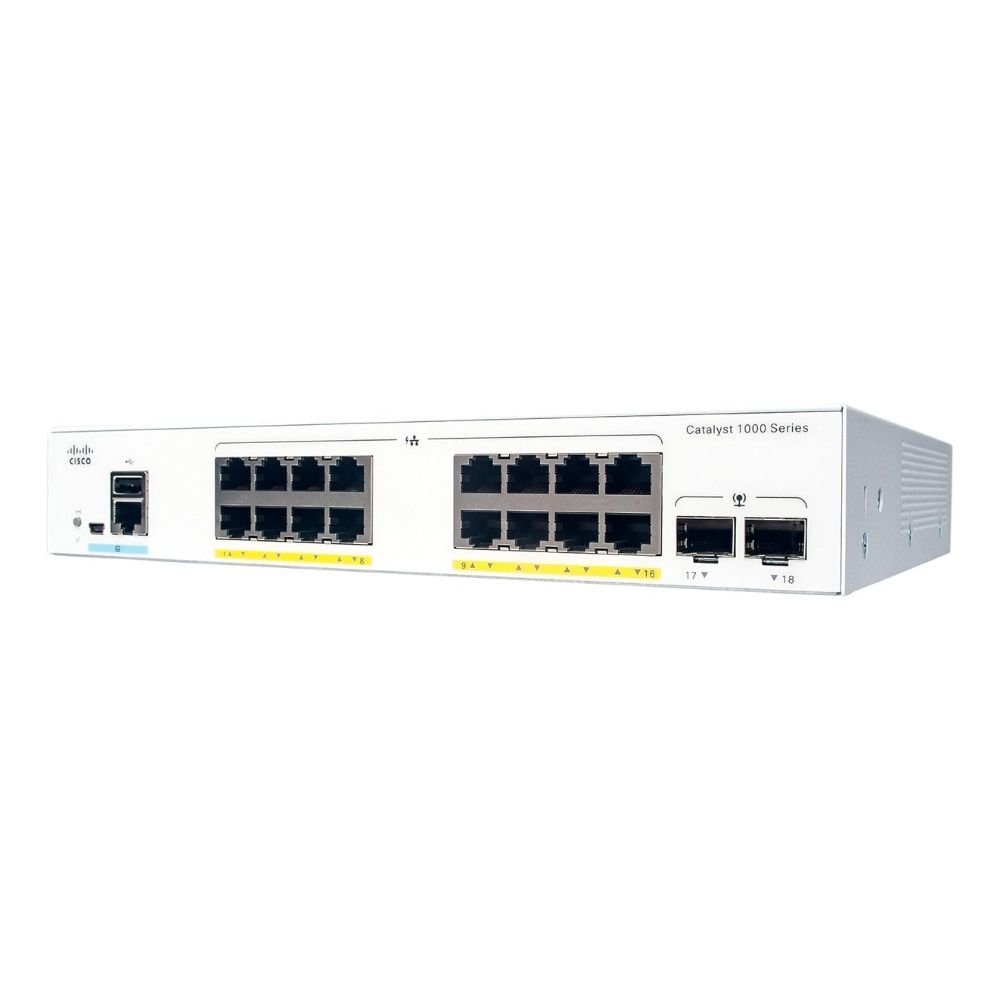

C1000-16FP-2G-L - Cisco Catalyst 1000 Series Switches
Detail:
Cisco C1000-16FP-2G-L Catalyst 1000 Series Managed Ethernet 16-Port Switch
Condition:
New
Price:
Original price was: $1,759.00.$1,734.00Current price is: $1,734.00.
Warranty:
Quantity:
Shipping:
Payment:
24/7 Online Service
+1 (512) 885-5387
info@jazzcybershield.com
30 Days Return & Refund
You may return a product within 30 days of the delivery date and the proccessing time is 15 days.
Best Price Guarantee
Found it cheaper? Let us know! We're committed to offering the lowest prices around.
Product Detail
- HARDWARE CONFIGURATION: 16 10/100/1000 Gigabit Ethernet ports, 2 SFP+ uplink ports; compact form factor switch
- POWER: Power budget of 240W with Perpetual PoE+ support for uninterrupted power to PoE devices, even in case of switch reboot
- MANAGEMENT: Manage the switch via the Cisco IOS CLI (command-line interface) and/or intuitive web UI. Centrally monitor and configure up to 8 switches via a single IP or with any third-party network management tool
- SECURITY: Enterprise-class security that natively supports IPv4/IPv6 FHS security features such as port security, DHCP snooping, and dynamic ARP inspection, which can easily be configured using a single “Auto-Secure” command, along with 802.1x support for all connected devices
- PEACE OF MIND: Enhanced limited lifetime warranty
Cisco Catalyst C1000-16FP-2G-L managed switch is designed to address the network connectivity challenges inherent among small to mid-sized businesses in a flexible and efficient manner. And for better protection of the investment and ease of use, performance of this switch does not compromise on the numerous ports it has that enhance usability for many diverse applications in many different settings.
Key Features:
Port Configuration:
16 x 10/100/1000 Base-T Ethernet Ports: Provides large array of ports to connect devices which include computers, printers, and IP phones.
2 x 1G SFP Uplink Ports: Offers convenient variations for connecting high bandwidth physical connections into the device simplifying the process of networking the switch into larger geographical scopes.
Power over Ethernet (PoE):
PoE+ Implementyon: Dynamic usage of up to 30W in any one port making it possible to connect such devices as the wireless access points, VoIP cameras, and seats in the network with the switch without extra connecting power effects.
Layer 2 and Layer 3 Features:
Smart Switching Capabilities: Employs the use of VLANs, Link Aggregation and Spanning Tree Protocol STP among other Network devices/features for better management and segmentation control of the network.
Security Features:
All-Round Protection: Possesses 802.1X ports authentication, DHCP snooping, Access Control lists among other features to protect the network from being hacked into or other risks.
User-Friendly Management:
Cisco Web UI: The configuration and monitoring takes place at ease, thanks to the web user interface which does not bet on networking professionals only.
Energy Efficient:
Designed for Sustainability: This device also supports IEEE 802.3az Energy Efficient Ethernet which makes it possible to efficiently manage power whilst operating effectively.
Compact Design:
Rack-Mountable Form Factor: It can fit into the standard racks out there or can be placed on the table as a switch which makes it a portable option in all situations.
C1000-16FP-2G-L Specification
C1000-16FP-2G-L Specifications |
|
| Gigabit Ethernet ports | 16 |
| Uplink interfaces | 2 SFP |
| PoE+power budget | 120W |
| Fanless | Y |
| Dimensions (WxDxH in inches) | 10.56 x 11.69 x 1.73 |
|
Console ports |
|
| RJ-45 Ethernet | 1 |
| USB mini-B | 1 |
| USB-A port for storage and Bluetooth console | 1 |
|
Memory and processor |
|
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
|
Performance |
|
| Forwarding bandwidth | 18 Gbps |
| Switching bandwidth | 36 Gbps |
| Forwarding rate(64—byte L3 packets) | 26.78 Mpps |
| Unicast MAC addresses | 16000 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 static routes | 16 |
| IPv6 static routes | 16 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Dying Gasp | Yes |
| MTBF in hours (data) | 2,165,105 |
| MTBF in hours (PoE) | 706,983 |
| MTBF in hours (Full PoE) | \ |
|
Environmental |
|
| Operating temperature Seal level | -5 to 50°C* |
| Up to 5,000ft (1500 m) | -5 to 45°C |
| Up to 10,000 (3000 m) | -5 to 40°C |
| Operating altitude | 10,000 ft (3,000m) |
| Operating relative humidity | 5% to 90% at 40v |
| Storage temperature | -13 to 158°F (-25 to 70°C) |
| Storage altitude | 15,000 ft (4500m) |
| Storage relative humidity | 5% to 95% at 65°C |
| *Note:
50°C operation is supported for short term operation only; GLC-BX-D/U and CWDM optics cannot support 50°C operation; Minimum ambient temperature for cold start is at 0°C (32°F) |
|
|
Safety and compliance |
|
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1
GB 4943.1-2011 |
| EMC: Emissions
|
47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
| EMC: Immunity | EN55024 (including EN 61000-4-5), EN300386, KN35 |
| Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco | Common Language Equipment Identifier (CLEI) code |
| U.S. government certifications | TBD |
|
Connectors and interfaces |
|
| Ethernet interfaces
|
* 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling
* 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling * 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling * 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Indicator LEDs
|
* Per-port status: link integrity, disabled, activity
* System status: system |
| Console cables
|
* CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
* CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors |
| Power
|
* Use the supplied AC power cord to connect the AC power connector to an AC power outlet
* Models have external power supply |
