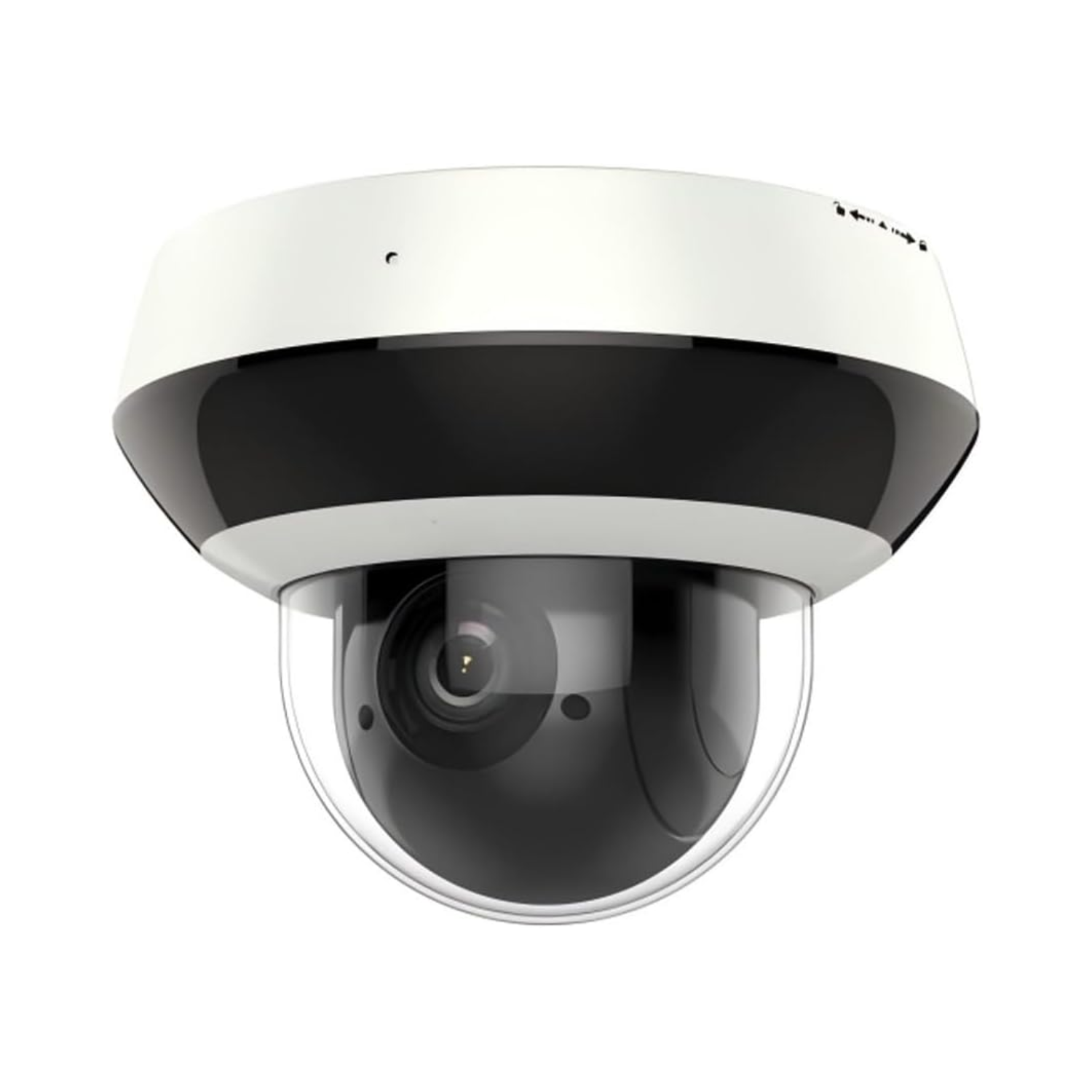

DS-2DE2A404IW-DE3

4X Optical Zoom and 16X Digital Zoom

4X optical zoom and 16X digital zoom allows precise zoom-in or zoom-out for finest details or wide viewing angle. PTZ camera rotates Movement Range (Pan) 0° to 355°and Movement Range (Tilt) 0° to 90°. Pan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s. Tilt speed: configurable from 0.1° to 100°/s, preset speed 100°/s.

Basic Event and Smart Event

Support motion detection, video tampering alarm, exception,face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection.

Client iVMS-4200, HikCentral Pro, Hik-Connect

PoE camera requires only one Ethernet cable to provide power and video signal transmission, plug and play, avoiding complicated setup and installation. Work with Client iVMS-4200, HikCentral Pro, Hik-Connect to view real-time video anywhere. Free download and use from iOS or Android, Windows or Mac. Support Web Browser IE 10-11, Chrome 57+, Firefox 52+, Safari 11+.

Camera
Image Sensor: 1/3″ progressive scan CMOS
Effective Pixels: 2560(H)×1440(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR WDR: 120Db
Day& Night: ICR
Digital Zoom: 16×
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 2.8 to 12mm, 4× optical zoom
Zoom Speed: Approx. 2s (optical lens, wide-tele)
Angle of View: Horizontal field of view: 100° to 33° (Wide-Tele),Vertical field of view: 53° to 18° (Wide-Tele),Diagonal field of view: 119° to 37.5° (Wide-Tele)
Minimum Working Distance: 10 to 1500mm (wide-tele) Aperture Range: F1.6 to F2.7
Pan & Tilt
Pan Range: 0° to 330°
Pan Speed: Configurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
Tilt Range: Tilt: 0°~90°
Tilt Speed: Configurable, from 0.1°/s to 100°/s，Preset Speed: 100°/s
Number of Preset: 300
Infrared
IR irradiation distance: 20m
IR irradiation angle: Adjustable by zoom
Input & Output
Audio Input: 1-ch audio input
Audio Output: 1-ch audio output
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 2560 × 1440
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode: OFF/Audio input/Audio output
General
Power Supply: 12 VDC & PoE
Power Consumption: Max.: 12 W (Max. 3.9 W for IR)
Protection Level: IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material: Aluminum alloy, PC, PC+ABS
Dimensions: Φ 130.7 mm × 101.7 mm (Φ 5.15″ × 4.00″)
Weight (approx.): Approx. 0.53 kg (1.17 lb)

The Hikvision DS-2DE2A404IW-DE3 is a high-performance 4MP PTZ (Pan-Tilt-Zoom) IP camera designed for outdoor surveillance. It offers a combination of advanced features for clear, reliable, and efficient video monitoring.

• • Perimeter protection
  • Parking lot monitoring
  • Industrial security
  • Retail stores
  • Warehouses
  • Smart Functions: Offers features like privacy masking, region of interest (ROI), and intelligent tracking.
  • Compatibility: Works seamlessly with Hikvision NVRs and other compatible systems.
  • Easy Installation and Management: User-friendly interface and intuitive setup process.
  • International Version: Supports multiple languages and conforms to international standards.
  • Fully Upgradeable Firmware: Allows for future updates and enhancements to improve camera performance and features.
